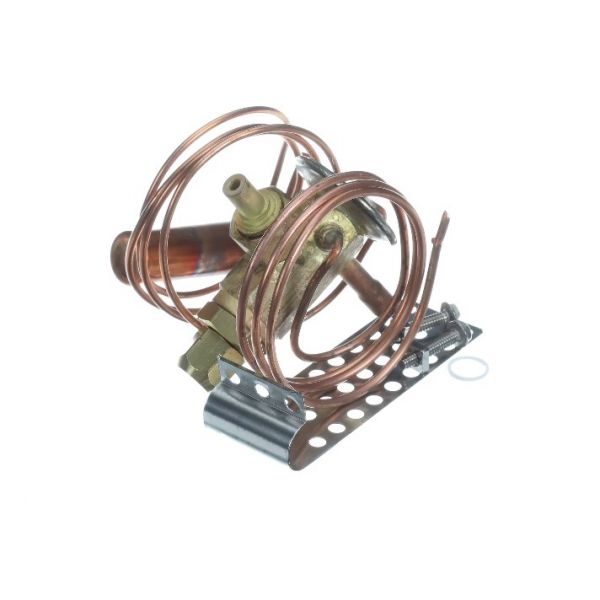

Trane VAL07559 5-Ton Thermostatic Expansion Valve .31 ODS X Chatleff

Special Price $212.90 Regular Price $303.95
In stock
SKU
VAL07559
The Trane VAL07559 Thermostatic Expansion Valve is used to control the flow of the liquid refrigerant, in the evaporator in HVAC systems. This sensing bulb and internal valve mechanism regulate the flow of refrigerant according to the temperature and pressure conditions, which enables the 5-ton TXV with a 0.31 ODS x Chatleff connection to control the flow during operation in air-conditioning and heat pump elements. This liquid line is a suction line where a sensing bulb is fitted in the line, and the valve body is attached to the refrigerant piping.
Manufacturer:
https://www.partshnc.com/media/catalog/product/v/a/val07559.jpg
Write Your Own Review
You're reviewing:Trane VAL07559 5-Ton Thermostatic Expansion Valve .31 ODS X Chatleff
Your Rating
Customer Questions
What maintenance is required for the Trane VAL07559 Thermostatic Expansion Valve?

Inspect the valve regularly for signs of leaks or corrosion. Ensure proper superheat adjustment and clean any debris from the orifice. Proper maintenance helps maintain efficient refrigerant flow and prevents system performance issues. Handle with care to avoid refrigerant exposure.

What are common issues with the Trane VAL07559 Thermostatic Expansion Valve?

  • Inconsistent cooling or temperature swings.
  • Refrigerant leaks at connections.
  • Sticking or jammed valve mechanism.
  • Reduced system efficiency or pressure imbalance.

What is the purpose of the Chatleff connection on the Trane VAL07559 TXV?

The Chatleff connection is part of the valve's connection configuration. It must match the corresponding connection arrangement in the equipment to ensure the replacement is suitable.

How does the .31 ODS connection affect TXV replacement selection?

The .31 ODS connection size must match the equipment's specified tubing connection. A valve with a different connection size may not be a suitable replacement even if its capacity is the same.

How can insufficient refrigerant feeding through the VAL07559 affect evaporator performance?

Insufficient refrigerant flow can reduce the evaporator's effective heat absorption. This may contribute to elevated superheat, low suction pressure, and reduced cooling output.

Can fluctuating suction pressure indicate a problem with the thermostatic expansion valve?

Yes. Inconsistent refrigerant metering can contribute to changing evaporator conditions and fluctuating suction pressure. Other refrigeration-system issues can cause similar symptoms, so further diagnosis is necessary.

What should be checked before replacing the Trane VAL07559 with another TXV?

Verify the replacement part number, cooling capacity, and connection configuration against the original equipment documentation. Matching the manufacturer alone does not establish interchangeability.

Installation Steps

Step 1: Turn off all power to the HVAC system and relieve refrigerant pressure for safety.

Step 2: Remove the access panel and locate the existing expansion valve.

Step 3: Disconnect the valve from the liquid line and evaporator connections.

Step 4: Install the new valve in the same orientation, ensuring proper seating and alignment.

Step 5: Reattach any sensing bulbs or brackets as required.

Step 6: Restore power, recharge refrigerant if needed, and test system operation.
