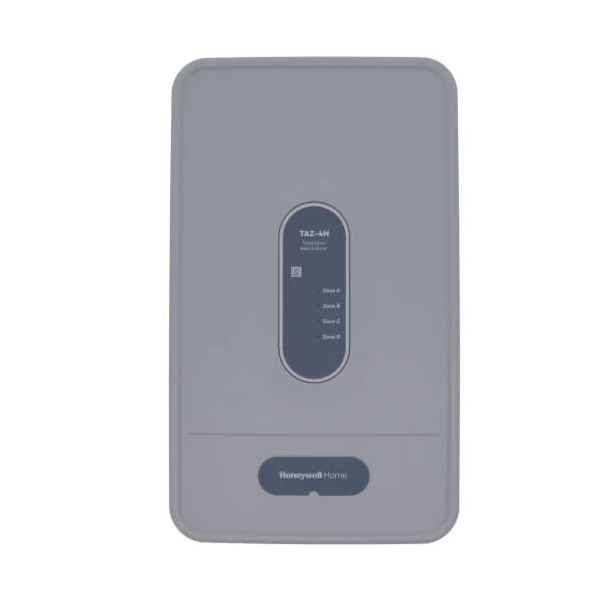

The Resideo TAZ-4H Add-A-Zone Panel is an expansion panel that enhances the zoning of HVAC systems, making it easier to control. This panel can be added up to four zones to an existing system and may be expandable up to 32 zones for controlling the temperature in various areas. It has a digital display that makes monitoring and controlling it easy and thus can be used by homeowners and technicians. It uses 24 VAC and is designed for environmental conditions that range from -20°F to 150°F.
The Resideo TAZ-4H is a compact and versatile zone control panel designed to expand the capabilities of your existing HVAC system. It allows you to add up to four additional zones to your home or building, providing individual temperature control for specific areas and enhancing your overall comfort. to be used with the HZ432 zone panel in forced-air zoning systems. Its primary function is to add up to 4 additional zones to your existing system, allowing for individual temperature control in different areas of your home or building. Here's a detailed breakdown:
Key Features:
Adds 4 zones to existing HZ432 zone panel: Expands your system's reach to accommodate additional rooms, floors, or separate spaces within your property.
Individual zone control: Each zone has its own dedicated damper control, enabling precise temperature adjustments for personalized comfort.
Easy installation and setup: The TAZ-4H connects seamlessly with the HZ432 panel through simple push-terminal wiring and intuitive configuration options.
Compatible with most thermostats: Works with various 24-volt thermostats, offering flexibility for existing systems and future upgrades.
Compact design: The small and lightweight housing allows for convenient mounting in various locations without taking up significant space.
Durable construction: Built with reliable components for long-lasting performance and consistent temperature control.
Benefits:
Increased comfort: Enjoy personalized temperature settings in different areas, eliminating hot or cold spots and catering to individual preferences.
Energy savings: By only heating or cooling areas that are occupied, precise zone management helps optimize energy utilization and cut down on needless energy consumption.
Improved indoor air quality: An interior climate that is more comfortable and healthful can be achieved through improved control over ventilation and airflow.
Flexibility and scalability: Easily add more zones as your needs evolve or expand your living space without major system overhauls.
Cost-effective solution: Compared to installing an entirely new HVAC system, adding zone control with the TAZ-4H offers a more affordable way to achieve personalized comfort in multi-zone environments.
Signs of a Faulty TAZ-4H 4 Zones-A-Zone Panel Resideo:
While the 4 Zones-A-Zone Panel TAZ-4H is a reliable zone control panel, it's not immune to potential issues. Here are some warning signs that might indicate a faulty TAZ-4H:
Temperature Control Issues:
Uneven or inconsistent temperature in specific zones: Some zones might not reach the desired temperature or fluctuate significantly, suggesting problems with damper control or sensor readings.
Inability to adjust temperature in certain zones: The controls might not work for specific zones, indicating faulty wiring connections, damper malfunction, or communication issues with the thermostat.
System not turning on or off as expected in certain zones: Zones might not activate or deactivate according to the programmed schedule or manual commands, suggesting control problems or communication errors.
Physical and Operational Issues:
Visible damage to the panel: Cracks, dents, or corrosion on the housing could indicate internal component damage or impact signal transmission.
Unusual noises: Clicking, buzzing, or other unusual sounds emanating from the panel might point to internal component malfunctions or wiring issues.
Error messages or indicators: The panel might display error codes or LED indicators signaling specific problems. Refer to the manual for troubleshooting instructions.
Frequent power cycling: The 4 Zones-A-Zone Panel TAZ-4H might restart repeatedly, indicating internal electrical issues or software problems.
Connectivity and Communication Problems:
Loss of communication with the thermostat: The panel might not communicate effectively with the thermostat, hindering zone control and temperature adjustments.
Wiring issues: Incorrect or loose wiring connections between the panel and other components could disrupt communication and system operation.
Software updates needed: Outdated software might cause compatibility issues or performance problems. Check for updates that are available, and if necessary, install them.
Additional Warning Signs:
Increased energy consumption: Inefficient 4 Zones-A-Zone Panel TAZ-4H control due to malfunctions might lead to higher than usual energy bills.
Reduced comfort: Difficulty maintaining desired temperatures in specific zones can impact overall comfort and satisfaction.
Safety concerns: Faulty zone control or communication issues could potentially lead to safety hazards like overheating or underheating in certain areas.
