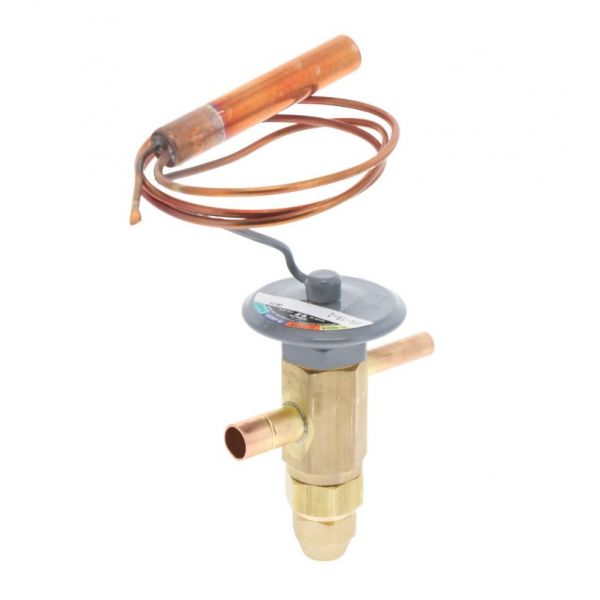

Sporlan Controls 109906 1/8Ton Thermostatic Expansion Valve(TXV) R404A 1/8" X 3/8"ODF

Special Price $215.50 Regular Price $239.21
In stock
SKU
109906
The Sporlan Controls 109906 Thermostatic Expansion Valve is used to control the flow of refrigerant to the evaporator coil of the cooling equipment in HVAC systems. The valve is made with a 1/8-ton capacity with R404A refrigerant with a 1/8 x 3/8 ODF connection between the liquid line and the evaporator inlet. It is placed in the refrigeration loop where it continually controls the distribution of refrigerant needed for stable cooling and heat exchange. This liquid form that is flowing through the valve is subjected to a moderate pressure reduction, which enables it to expand to the evaporator section used in HVAC systems.
https://www.partshnc.com/media/catalog/product/1/0/109906.jpg
Write Your Own Review
You're reviewing:Sporlan Controls 109906 1/8Ton Thermostatic Expansion Valve(TXV) R404A 1/8" X 3/8"ODF
Your Rating
Customer Questions
What maintenance is required for the Sporlan Controls 109906 Thermostatic Expansion Valve?

Regularly inspect the valve for leaks, blockages, or corrosion. Clean debris from the inlet and outlet ports, ensure proper refrigerant flow, and check the sensing bulb placement. Proper maintenance ensures accurate temperature control and safe system operation.

What are common issues with the Sporlan Controls 109906 Thermostatic Expansion Valve?

  • Sticking or sluggish valve movement.
  • Refrigerant overfeeding or underfeeding.
  • Erratic temperature regulation.
  • Blockages in the valve or sensing bulb tubing.

How does the Sporlan Controls 109906 regulate refrigerant flow in low-capacity applications?

The valve adjusts refrigerant metering in response to evaporator operating conditions, helping regulate the small refrigerant flow required by the connected cooling system.

What role does the sensing bulb play in the operation of this TXV?

The sensing bulb monitors temperature at the evaporator outlet and provides feedback to the thermostatic power element, which adjusts refrigerant flow according to operating conditions.

What operating conditions may indicate that the 109906 is underfeeding the evaporator?

Elevated suction superheat, low suction pressure, and reduced cooling output may indicate insufficient refrigerant feeding. A technician should evaluate these conditions before determining whether the valve has failed.

Why should both ODF connection sizes be checked when selecting a replacement?

Matching both connection sizes helps ensure that the replacement valve is suitable for the existing refrigerant line arrangement and avoids connection mismatches during replacement.

Can an incorrect TXV capacity affect the operation of a refrigeration system?

Yes. A valve with an unsuitable capacity may not regulate refrigerant flow appropriately for the evaporator's requirements, potentially affecting superheat control and cooling performance.

Installation Steps

Step 1: Turn off power and refrigerant supply to the system and allow it to stabilize.

Step 2: Remove the access panel to reach the existing expansion valve.

Step 3: Disconnect refrigerant lines and remove the old TXV.

Step 4: Install the new TXV, ensuring correct orientation and proper flare or ODF connections.

Step 5: Reconnect refrigerant lines and tighten fittings securely.

Step 6: Restore power and refrigerant, then test system operation.
