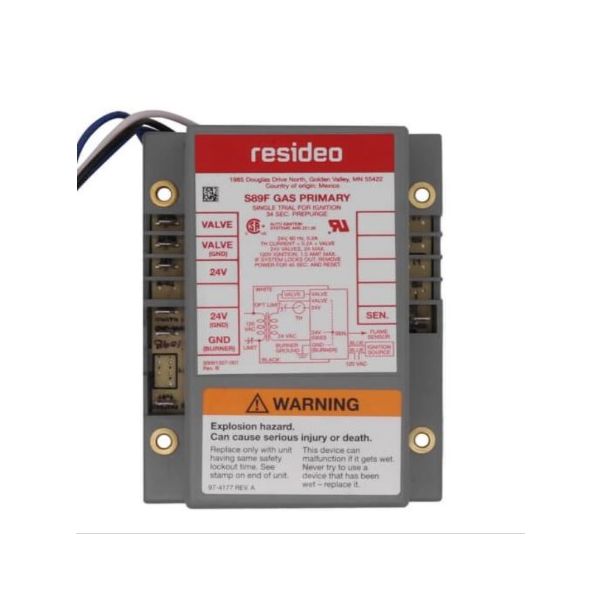

The Resideo S89F1098-Direct Spark Ignition Control is a high-performance module for gas-fired heating systems such as furnaces, boilers, and unit heaters. It has a dual igniter-sensor rod to ensure ignition and flame sensing. It has a trial time of 4 seconds and increases safety by turning off the supply of gas in case of failure to ignite. This control module enhances the system performance, minimizes energy usage, and provides reliable performance. It is robust in construction, reducing the frequency of maintenance and the overall useful life of the equipment is also long.
The Resideo S89F1098 is a direct spark ignition control module designed for use in gas-fired heating systems, such as furnaces, boilers, conversion burners, and other heating appliances. It provides electronic control of the ignition sequence and gas control operation, ensuring safe and efficient operation of your heating system.
Key Features:
Two-rod design: Offers robust and reliable ignition performance.
4-second lockout: Prevents excessive gas usage and potential fire hazards.
Bulk packaging: Available in bulk quantities for commercial applications.
Compact size: Fits easily in most appliance compartments.
Durable construction: Built with high-quality components for long-lasting operation.
Compliance: Meets relevant safety and performance standards.
Function:
Direct spark ignition: Provides high-voltage spark to ignite the main burner directly, eliminating the need for a continuous pilot flame.
Lockout feature: Prevents repeated ignition attempts if the initial spark fails, minimizing gas consumption and improving safety.
Sequence control: Manages the ignition sequence, including gas valve opening and burner operation, for smooth and efficient start-up.
Flame sense technology: Improves safety by identifying the existence of a flame and cutting the gas supply immediately if it goes out.
Compatibility: Works with various gas types (natural and LP) and can be used with existing spark transformers and gas control valves.
Benefits:
Increased efficiency: Eliminates the continuous pilot flame, reducing gas consumption and lowering energy costs.
Improved safety: Flame sense technology prevents gas leaks and potential fire hazards.
Reliable ignition: Ensures consistent and reliable burner start-up.
Easy installation: Works with existing equipment and requires minimal modifications.
Versatility: Compatible with various gas types and heating appliances.
Important Notes:
Consult the installation manual and ensure compatibility with your specific appliance before purchase.
A certified gas specialist should carry out the installation.
When using gas equipment, always take safety precautions.
Additional Information:
Resideo offers a wide range of ignition control modules for various applications.
You can find the S89F1098 and other Resideo products at authorized distributors, online retailers, or the Resideo website.
Signs of a Faulty Resideo S89F1098 Direct Spark Ignition Control:
Ignition Issues:
No ignition: The burner doesn't ignite when heat is demanded, leaving you without heat.
Repeated ignition attempts: The module attempts to spark repeatedly but fails to ignite the main burner.
Weak or unstable flame: The burner flame appears weak, flickering, or unstable, suggesting incomplete combustion.
Gas odor: A persistent gas odor around the appliance can indicate incomplete combustion or a leak due to faulty equipment.
Functional Problems:
Uneven heat distribution: The appliance heats unevenly or inconsistently, leading to hot spots or insufficient heating.
Overheating: The appliance or the control module becomes abnormally hot, indicating potential internal issues.
Unexpected shutdowns: The appliance shuts down unexpectedly or intermittently, disrupting its operation.
Error codes or flashing lights: The module might display error codes or flashing lights, indicating specific malfunctions. Consult the manual for their meaning.
Electrical and System Issues:
No spark: The module doesn't generate any spark at all, preventing ignition.
Unusual noises: Strange clicking, buzzing, or arcing sounds coming from the module can indicate internal component issues.
Failure to shut off: The gas supply doesn't turn off automatically if the burner flame extinguishes, posing a significant safety hazard.
Additional Warning Signs:
Visible sparking or arcing: Sparks or arcing outside the designated ignition area can indicate electrical faults and fire risks.
Burning smell: The appliance may be overheating or experiencing electrical issues if there is a burning smell nearby.
Remember:
If you suspect any of these signs, do not attempt to diagnose or repair the S89F1098 Direct Spark Ignition Control yourself. Contact a qualified gas technician immediately for inspection and potential repair.
Always prioritize safety when operating gas-powered equipment. If you smell gas, turn off the gas and get out of the area.
To find precise troubleshooting procedures and the meanings of problem codes, go to the user handbook.
