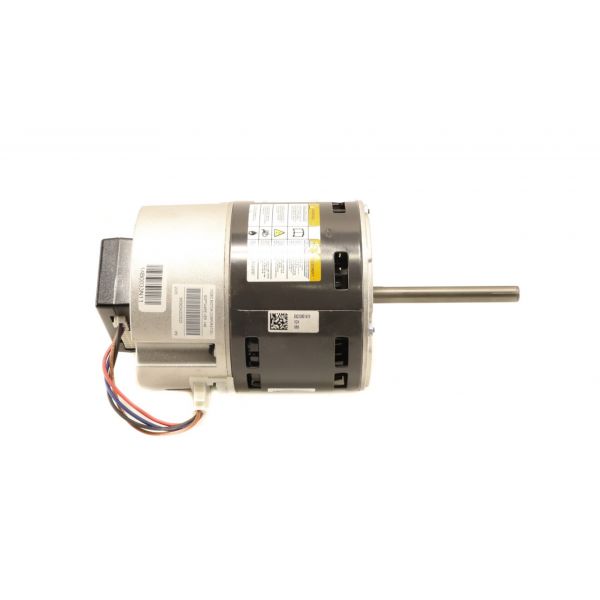

ClimateMaster S14S0016N03 1/2 HP ECM Motor 1250 RPM 120-240V

Rating:
5 5 8
8  Reviews Add Your Review
Special Price $795.78 Regular Price $883.32
In stock
SKU
S14S0016N03

The ClimateMaster S14S0016N03 is a high-performance ECM designed specifically for HVAC systems. With a flexible power source that can run this motor between 120 and 240 volts, it can be used in a variety of applications. It operates with efficiency and dependability because to its 1/2 horsepower power rating and 1250 revolutions per minute rotation speed. ECM motors, such as the S14S0016N03, use cutting-edge technology to precisely manage motor operation and speed. ECM motors, in contrast to conventional motors, modify their speed in response to particular heating or cooling needs, which enhances energy efficiency and lowers electricity usage. This makes them a sustainable solution for HVAC systems that care about the environment. HVAC equipment made by ClimateMaster frequently uses the S14S0016N03 ECM motor.



Add to Wish List
ECM Motor, Thermostats
Manufacturer:
https://www.partshnc.com/media/catalog/product/S/1/S14S0016N03_climatemaster_partshnc.jpg

An ECM motor uses electronic control to manage the motor's operation and produce rotational movement. The ClimateMaster S14S0016N03 uses this electronically commutated design to provide the rotational drive required by the connected HVAC component. The ECM configuration is a defining characteristic of the motor and should be considered when selecting a corresponding replacement.

ECM Motor Technology:
An ECM motor uses electronic control to manage motor operation and produce rotational movement. The S14S0016N03 uses this motor technology to provide the rotational movement required by the associated HVAC component. Its ECM configuration is an important characteristic when matching the motor with the original equipment.

Motor Speed and Electrical Characteristics:
The S14S0016N03 is specified for 120-240V, 1/2 HP, and 1250 RPM operation. The voltage identifies the required electrical range, the horsepower indicates the motor's rated capacity, and the RPM identifies its specified operating speed. These specifications provide key criteria when comparing the motor with the original equipment requirements.

Replacement Guidelines:
Replacement may be appropriate when the existing ECM motor no longer provides the required rotational movement or develops a condition that prevents normal operation. Before selecting a replacement, verify the existing motor's part number, ECM configuration, voltage, horsepower, speed, and other applicable motor requirements.

Common Failure Symptoms:

  • Motor fails to start when rotation is required
  • Intermittent motor operation
  • Irregular rotational movement
  • Unusual noise or vibration during operation
  • Rotational movement stops during an operating cycle

Equipment Compatibility:
The ClimateMaster S14S0016N03 ECM Motor should be selected for compatible HVAC equipment requiring the corresponding ECM motor configuration. Before purchasing, verify the existing motor's part number, ECM type, 120-240V requirement, 1/2 HP rating, 1250 RPM specification, and other applicable equipment requirements to confirm compatibility.

Technical Specifications:
Part Identification:
Brand: ClimateMaster
Part Number: S14S0016N03
Type: ECM Motor

Electrical:
Voltage: 120-240V
Horsepower: 1/2 HP

Mechanical:
Speed: 1250 RPM

Reviews 8
Write Your Own Review
You're reviewing:ClimateMaster S14S0016N03 1/2 HP ECM Motor 1250 RPM 120-240V
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the ClimateMaster S14S0016N03 ECM Motor?

Inspect motor wiring, connectors, and mounting hardware regularly to ensure secure and corrosion-free operation. Clean dust and debris from the motor housing to prevent overheating and performance loss. Monitor operating speed and noise for signs of bearing wear or electrical issues. Always disconnect power before performing maintenance to ensure safety.

What are common issues with the ClimateMaster S14S0016N03 ECM Motor?

  • Reduced or inconsistent airflow.
  • Unusual humming or vibration.
  • Overheating during operation.
  • Failure to start or intermittent performance.

What type of motor is the ClimateMaster S14S0016N03?

The S14S0016N03 is an ECM motor designed to provide electronically controlled rotational movement for a connected HVAC component.

What does the ECM design do in the S14S0016N03?

The ECM design uses electronic control to manage motor operation and produce the rotational movement required by the connected HVAC component.

What are the electrical and speed specifications of the S14S0016N03?

The motor is specified for 120-240V operation, has a 1/2 HP rating, and is specified for 1250 RPM.

What symptoms may indicate that an ECM motor needs replacement?

Failure to start, intermittent operation, irregular rotation, unusual noise or vibration, or loss of rotational movement during operation may indicate that the motor requires replacement.

What should I verify before purchasing the S14S0016N03?

Verify the existing motor's part number, ECM configuration, voltage, horsepower, speed, and other applicable motor and equipment requirements.

Installation Steps

Step1: Turn off power to the HVAC/heat pump and confirm it’s fully disconnected.

Step2: Remove the access panel and disconnect wiring from the old ECM motor.

Step3: Unscrew and remove the old motor, install the new 1/2HP ECM motor in correct orientation.

Step4: Reconnect wiring, replace panel, restore power, and test for proper rotation and operation.
