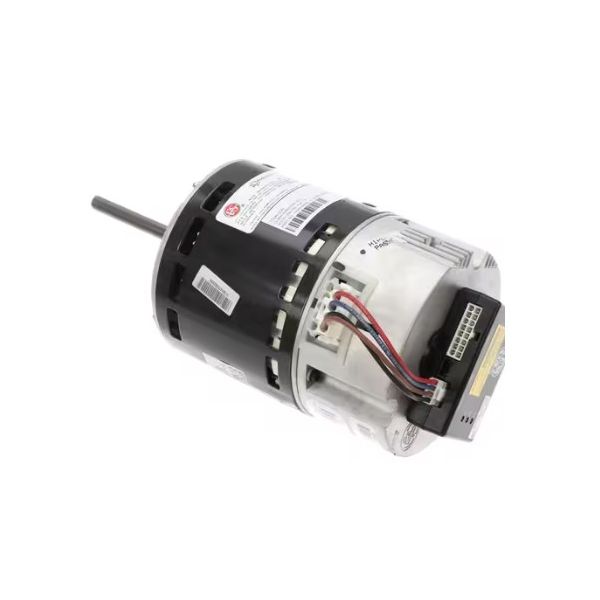

main product photo

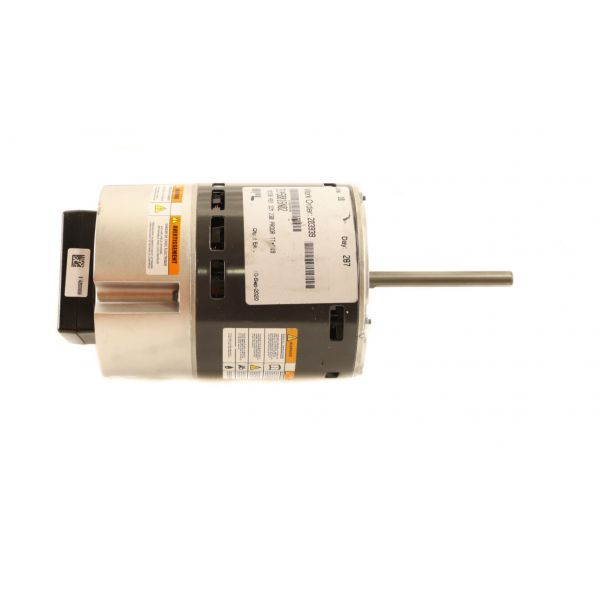

ClimateMaster S14S0016N02 1 HP ECM Motor 120-240V 1250/Var

Rating:
5 5 1
1  Review Add Your Review
Special Price $353.02 Regular Price $659.95
In stock
SKU
S14S0016N02

The ClimateMaster S14S0016N02 is a versatile 1-horsepower motor suitable for use in a variety of HVAC systems. In comparison to conventional AC motors, this electronically commutated motor  delivers higher energy efficiency. Due to its 1250/Var rating and dual voltage compatibility of 120/240V, it can be used in both light business and domestic settings. ECM motors function by transforming AC power into DC power, which enables smoother operation and accurate speed control. Using the ClimateMaster S14S0016N02 has several advantages, such as lower energy expenditures, quieter operation, improved comfort control, and potentially a longer lifespan. For air handlers, heat pumps, and other HVAC equipment where performance and efficiency are important factors, this motor is a dependable option.



Add to Wish List
ECM Motor, Motors & Capacitors
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/c/screenshot_2025-12-13_134727.jpg

An ECM motor provides electronically controlled mechanical rotation for a connected HVAC component. The ClimateMaster S14S0016N02 is a 1 HP ECM Motor specified for 120/240V operation and identified with a 1250/VAR designation. Its ECM configuration defines the motor technology used to provide rotational movement within the associated HVAC equipment.

ECM Motor Operation:
Electronic commutation controls the switching of electrical current within the ECM motor to produce mechanical rotation. The S14S0016N02 uses this electronically controlled operation to provide the rotational movement required by its associated HVAC component. This electronic commutation is the defining operating principle of the ECM motor.

Motor Rating and Electrical Characteristics:
The ClimateMaster S14S0016N02 is specified for 120/240V operation with a 1 HP rating and 1250/VAR designation. The voltage identifies the specified electrical supply range, while the horsepower identifies the motor's rated capacity. The 1250/VAR designation is an additional product-specific characteristic of the motor.

Replacement Guidelines:
Replacement may be appropriate when the existing ECM motor no longer provides the required rotational movement or develops a condition that prevents normal operation. Before selecting a replacement, verify the original part number, ECM configuration, 120/240V requirement, 1 HP rating, 1250/VAR designation, and other applicable motor requirements.

Common Failure Symptoms:

  • Motor fails to start
  • Intermittent motor rotation
  • Irregular rotational movement
  • Unusual motor noise or vibration
  • Motor stops providing rotation during operation

Equipment Compatibility:
The ClimateMaster S14S0016N02 ECM Motor should be selected for compatible HVAC equipment requiring the corresponding ECM motor configuration. Before purchasing, verify the equipment model, original part number, ECM type, 120/240V requirement, 1 HP rating, 1250/VAR designation, and other applicable motor requirements to confirm compatibility.

Technical Specifications:
Part Identification:
Brand: ClimateMaster
Part Number: S14S0016N02
Type: ECM Motor

Electrical Specifications:
Voltage: 120/240V
Horsepower: 1 HP

Mechanical Specifications:
Rating: 1250/VAR

Reviews 1
Write Your Own Review
You're reviewing:ClimateMaster S14S0016N02 1 HP ECM Motor 120-240V 1250/Var
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the ClimateMaster S14S0016N02 ECM Motor?

Inspect the motor regularly for dust buildup, loose wiring, and secure mounting to ensure stable operation. Check electrical connections and control signals for proper voltage and continuity. Listen for unusual noise or vibration that may indicate bearing wear. Always disconnect power before servicing to prevent electrical shock.

What are common issues with the ClimateMaster S14S0016N02 ECM Motor?

  • Motor failing to start.
  • Overheating during operation.
  • Excessive vibration or noise.
  • Electrical communication or control signal faults.

What type of motor is the ClimateMaster S14S0016N02?

The S14S0016N02 is an ECM motor designed to provide electronically controlled mechanical rotation for a connected HVAC component.

How does the ECM design work in the S14S0016N02?

Electronic commutation controls the switching of electrical current within the motor to produce the rotational movement required by the connected HVAC component.

What are the main specifications of the S14S0016N02 ECM Motor?

The motor is specified for 120/240V operation, has a 1 HP rating, and carries a 1250/VAR designation.

What signs may indicate that the S14S0016N02 needs replacement?

Failure to start, intermittent rotation, irregular movement, unusual noise or vibration, or loss of rotation during operation may indicate that replacement is appropriate.

What should I verify before selecting the S14S0016N02?

Verify the equipment model, original part number, ECM configuration, 120/240V requirement, 1 HP rating, 1250/VAR designation, and other applicable motor requirements.

Installation Steps

Step1: Turn off power to the HVAC/heat pump and confirm full disconnection.

Step2: Remove access panel and label wiring before disconnecting the old ECM motor.

Step3: Unscrew and remove the old motor, install the new 1HP ECM motor in proper orientation.

Step4: Reconnect wiring, replace panel, restore power, and test for correct rotation and operation.
