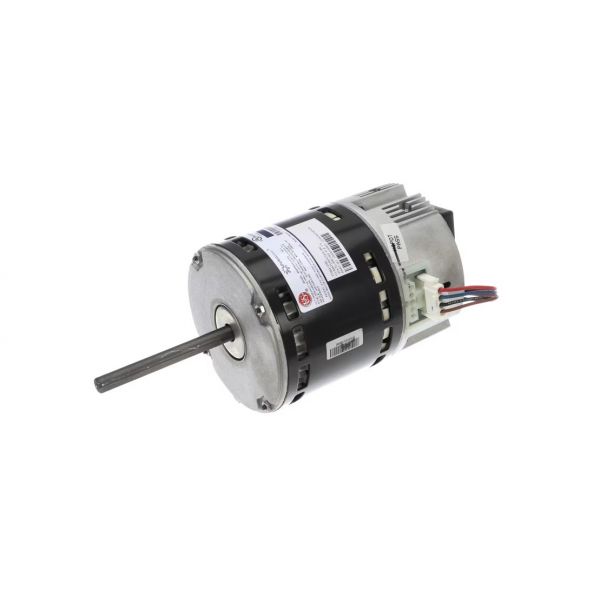

main product photo

ClimateMaster S14S0016N01 1 HP Blower Motor 1250 RPM 120-240V 1-Phase

Rating:
5 5 5
5  Reviews Add Your Review
Special Price $353.02 Regular Price $659.95
In stock
SKU
S14S0016N01

The ClimateMaster S14S0016N01 is a high-performance motor intended for use in HVAC systems, specifically air handlers and blowers. This motor can be used in a variety of applications due to its 1 horsepower power rating and compatibility with both 120V and 240V single-phase power supplies. The S14S0016N01 motor, which spins at 1250 revolutions per minute, is essential to the HVAC system's operation since it powers the fan or blower wheel. It is in charge of distributing conditioned air throughout the area, which helps with ventilation and temperature management. ClimateMaster HVAC equipment uses this engine, which is well-known for its dependability and efficiency. To provide steady and effective airflow, it functions by transforming electrical energy into mechanical energy and driving the air-handling components.



Add to Wish List
Motors & Capacitors, Blower Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/1/s14s0016n01.jpg

Blower assemblies use dedicated motors to provide the rotational drive needed for air movement. The ClimateMaster S14S0016N01 is a blower motor that supplies mechanical output to a connected blower assembly. This motor-driven output supports the blower's intended air-moving function during operation.

Motor Electrical and Mechanical Operation:
Electrical input is converted into rotational mechanical output within the motor. This output is delivered through the shaft to the connected blower, providing the mechanical drive required for the air-moving assembly.

Blower Shaft Drive:
The shaft provides the mechanical connection between the motor and the blower. As the shaft rotates, the connected blower receives the motor's mechanical output and uses that movement to perform its intended air-moving function.

Replacement Guidelines:
Replacement may be appropriate when the existing ClimateMaster S14S0016N01 develops inconsistent shaft rotation or can no longer maintain the drive required by the connected blower. Before ordering, compare the existing part number with the required blower configuration and specified motor characteristics.

Common Failure Symptoms:

  • Blower fails to start when air movement is required
  • Blower speed fluctuates during operation
  • Motor overheats while driving the blower
  • Blower stops intermittently during a cycle
  • Unusual motor noise develops during operation
  • Excessive vibration occurs at the blower assembly

Equipment Compatibility:
The ClimateMaster S14S0016N01 Blower Motor should be selected for blower applications requiring the corresponding motor configuration. Before purchasing, confirm the existing part number, blower arrangement, required horsepower, speed, voltage, phase, and other system requirements.

Technical Specifications:
Part Identification:
Brand: ClimateMaster
Part Number: S14S0016N01
Product Type: Blower Motor

Electrical:
Voltage: 120-240V
Phase: 1-Phase

Mechanical:
Horsepower: 1 HP
Speed: 1250 RPM

Reviews 5
Write Your Own Review
You're reviewing:ClimateMaster S14S0016N01 1 HP Blower Motor 1250 RPM 120-240V 1-Phase
Your Rating
Related Posts
  1. Ultimate Guide to Beckett Oil Burner Furnace: Installation, Maintenance, and Troubleshooting
Product Questions (10)
Customer Questions
What is the purpose of this motor?

 This motor plays a crucial role in powering components like fans and blowers, ensuring proper air circulation and temperature control in HVAC systems.

Is this motor energy-efficient for HVAC applications?

 Many of these motors are designed for efficiency, helping reduce energy consumption in HVAC systems and potentially lowering utility bills.

What does "1HP" signify in the context of HVAC systems?

"1HP" indicates that the motor has a 1-horsepower output, which influences its ability to drive air circulation and maintain temperature control.

What maintenance is required for the ClimateMaster S14S0016N01 Blower Motor?

Regularly inspect the motor for dust, debris, and signs of overheating. Lubricate bearings if serviceable, and ensure electrical connections are tight and corrosion-free. Check the mounting and alignment to reduce vibrations, helping maintain efficiency and prolong motor life.

What are common issues with the ClimateMaster S14S0016N01 Blower Motor?

  • Motor overheating under high load.
  • Excessive vibration or noise.
  • Inconsistent RPM or power fluctuations.
  • Electrical connection failures or short circuits.

What type of component is the ClimateMaster S14S0016N01?

The ClimateMaster S14S0016N01 is a 1HP blower motor designed to provide mechanical drive to a connected blower assembly.

How is the S14S0016N01 different from the blower assembly it drives?

The S14S0016N01 provides the motor-driven rotational output, while the blower assembly uses that mechanical input to perform its air-moving function.

How can the S14S0016N01 be identified when sourcing a replacement?

The S14S0016N01 part number identifies the specific ClimateMaster blower motor and provides a reference for comparing the existing component with the required replacement.

What should be matched when selecting the S14S0016N01?

Compare the existing part number, blower arrangement, required horsepower, speed, voltage, phase, and other system requirements before purchasing.

What role does the blower motor's shaft play in the assembly?

The shaft provides the mechanical connection through which the motor's rotational output reaches the connected blower.

Installation Steps

Step1: Turn off power to the HVAC system to prevent electrical shock.

Step2: Remove the blower access panel and disconnect wiring from the existing motor.

Step3: Loosen mounting bolts and carefully remove the old blower motor.

Step4: Inspect the blower housing and shaft for debris or damage.

Step5: Install the blower motor, aligning the shaft and mounting holes.

Step6: Secure mounting bolts and reconnect wiring according to original voltage configuration.

Step7: Replace the access panel, restore power, and test the blower for proper operation.
