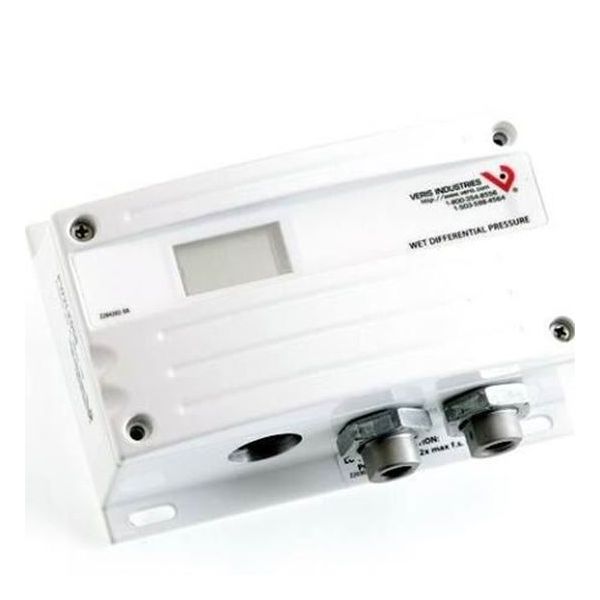

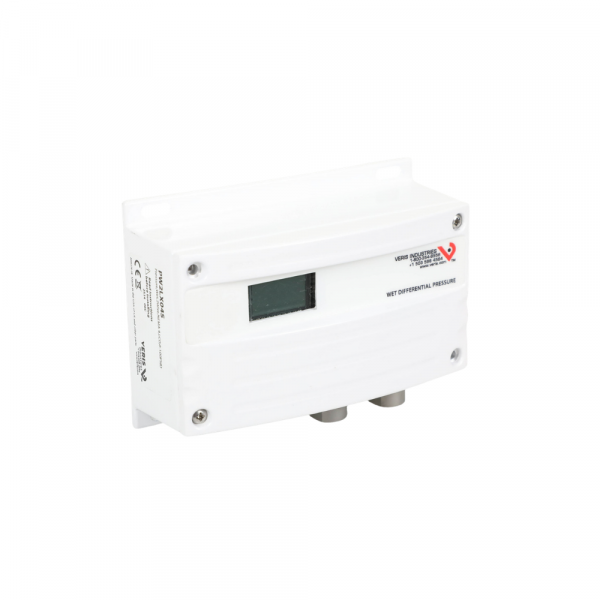

The Veris Industries PW2LX04S Wet Differential Pressure Transducer an accurate and is used for measuring differential pressure in HVAC systems. It works by measuring the pressure differential between two points and produces an electrical signal is proportional to pressure range of 0-100 PSID. The working process is based on a diaphragm that changes its position depending on the pressure difference and offers readings for managing or measuring the air or fluid flow. Designed for the system transducer is better for maintaining the efficiency of the entire system, its energy consumption, and the degree of control.
The Veris Industries PW2LX04S is a versatile and reliable wet differential pressure transmitter designed to measure the difference in pressure between two liquids or gases in various industrial applications. Its compact size, user-friendly features, and robust construction make it a popular choice for monitoring pressure across pumps, filters, heat exchangers, and other equipment.
Key Features:
Wet-wet differential pressure measurement: Suitable for measuring pressure differences in both liquids and gases.
Microprocessor-controlled accuracy: Provides exceptional accuracy of ±1.0% of full scale, ensuring reliable pressure readings.
LCD display: Offers clear and easy-to-read pressure readings on a backlit LCD display.
Jumper-selectable output switch: enables the choice of a regular (4-20 mA) or reverse (20-4 mA) output for interoperability with different control systems.
Rugged, die-cast enclosure: Provides NEMA 4 sealing for protection against dust, moisture, and harsh environmental conditions.
Switch-selectable pressure ranges: Reduces the need for multiple models and simplifies inventory management.
Pushbutton and remote zero adjustment: Enables easy calibration and maintains accuracy over time.
Jumper-controlled electronic surge dampening: enhances stability and lessens the effect of pressure changes.
Dual sensor design: Eliminates the need for a bypass valve in most applications, simplifying installation and reducing potential leak points.
Applications:
The Veris PW2LX04S is ideal for various applications requiring accurate measurement of differential pressure in wet media, including:
Pumping systems: Monitoring differential pressure across pumps to optimize performance and prevent cavitation.
Filtration systems: Measuring pressure drop across filters to determine service intervals and ensure proper filtration efficiency.
Heat exchangers: Monitoring differential pressure across heat exchanger plates to optimize heat transfer and detect potential fouling.
Compressor systems: Measuring pressure difference across compressors to optimize performance and prevent overpressurization.
Oil and gas production: Monitoring pressure in pipelines and wellheads for safety and efficiency purposes.
Signs of a Faulty PW2LX04S Differential Pressure Transducer Veris Industries:
While the Veris Industries PW2LX04S is a reliable wet differential pressure transmitter, like any equipment, it can experience issues over time. Here are some warning signs that might indicate a faulty Differential Pressure Transduce PW2LX04S
Inaccurate Measurements:
Significant deviations from expected pressure readings: This could be due to sensor malfunction, calibration drift, or issues with the media being measured.
Erratic or fluctuating pressure readings: This could indicate internal electrical problems or unstable pressure conditions in the system.
Output signal inconsistencies: If the 4-20 mA or 20-4 mA output signal deviates from the expected range, it suggests issues with the transmitter's electronics.
Display Issues:
Dim or malfunctioning LCD display: This could be due to battery depletion, internal electrical issues, or environmental factors affecting the display.
Incorrect or missing pressure readings on the display: This could indicate sensor malfunction, communication problems, or software issues.
Physical Signs:
Visible damage to the enclosure: Cracks, dents, or corrosion on the enclosure can compromise its sealing and affect internal components.
Leaks around the sensor connections: This could indicate loose fittings, damaged O-rings, or internal pressure build-up beyond the transmitter's capacity.
Unusual sounds or vibrations: Excessive noise or vibration from the transmitter could be a sign of internal component failure or problems with the pressure media.
Other Warning Signs:
Increased maintenance needs: If the Differential Pressure Transduce PW2LX04S requires frequent calibration or maintenance compared to its usual operation, it could indicate underlying issues.
Failure to respond to calibration attempts: If the transmitter doesn't respond to calibration attempts using the pushbutton or remote methods, it suggests internal electronic problems.
Failure to boot up or complete self-test: If the Differential Pressure Transduce PW2LX04S doesn't display the initial readings or complete its self-test during startup, it indicates potential internal malfunction.
