The Functional Devices PSH500A 500VA Power Supply is intended to convert input voltages of 120/240V into stable power for HVAC systems. This high-capacity unit is capable of providing reliable energy to support low-voltage controls, motors, and actuators in heavy-duty applications. It is designed for durability and efficiency, consistent power minimizing interruption risk, and improving system performance. The design characteristics, it is ideal for the commercial and industrial applications offering simplifying installation. It has a robust design that minimizes maintenance requirements, maximizes energy efficiency, and provides reliability for operational conditions.
120/240V 500Va Power Supply Functional Devices PSH500A

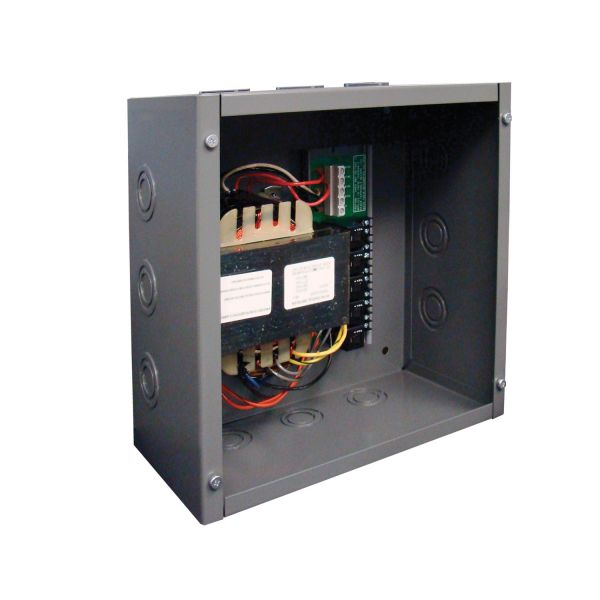

The Functional Devices PSH500A is a 500 VA, single-phase power supply that provides five 100 VA Class 2 outputs. It is intended for usage in numerous applications, including as security systems, lighting control, and building automation. The PSH500A is housed in a NEMA 1 rated enclosure and features overload and short circuit protection.
Key Features:
Function:
Converts high voltage (480VAC, 277VAC, 240VAC, or 120VAC) to safe and isolated 24VAC power.
Provides five independent 100VA output circuits. This caters to powering a wider range of low-voltage devices and systems compared to the PSH300A.
Features high/low voltage separation: Ensures safety and code compliance by separating high and low voltage compartments within the enclosure.
Suitable for various applications: Ideal for building automation, lighting control, HVAC systems, and industrial automation requiring multiple low-voltage devices.
Enhanced Features:
Increased capacity: Five 100VA circuits provide a total of 500VA, compared to 120VA in the PSH300A. This caters to systems with higher power demands.
On/off switch and circuit breaker for each output: Offers individual control and protection for each connected device.
LED indicators for each output: Provides real-time monitoring of circuit status for enhanced troubleshooting and maintenance.
Specifications:
Input voltage: 480VAC, 277VAC, 240VAC, or 120VAC (depending on model).
Output voltage: 24VAC.
Output current: 4 Amps per circuit.
Output power: 5 x 100VA (total 500VA).
Enclosure: Metal, offering durability and protection.
Mounting: Wall-mountable for convenient installation.
Additional features:
Plugable terminal blocks for low-voltage wiring.
UL Listed.
Benefits:
Versatility: Five isolated circuits cater to a broader range of low-voltage devices and system needs.
Increased power capacity: Suitable for systems with higher power demands compared to the PSH300A.
Real-time monitoring: LED indicators provide clear status information for each circuit.
Safety and reliability: Dependability and safety are ensured by individual circuit protection and the separation of high and low voltages.
Easy installation and maintenance: Plugable terminal blocks simplify wiring and troubleshooting.
Important notes:
Always consult a qualified electrician before installing or connecting the PSH500A.
Verify compatibility with your specific system voltage and power requirements.
Please make sure you follow the manufacturer's installation guidelines and safety recommendations.
Additional information:
Functional Devices offers various RIB® series power supplies with different configurations and features. Choose the model that best fits your specific needs and system demands.
Consider consulting with a qualified HVAC or electrical contractor for assistance with selecting and installing the appropriate power supply for your building automation or lighting control system.
Signs of a Faulty Functional Devices PSH500A 120/240V 500Va Power Supply:
The Functional Devices PSH500A power supply can manifest in various ways, impacting performance and potentially posing safety risks.
Performance Issues:
Low-voltage devices not functioning properly: This could indicate the PSH500A failing to deliver stable or sufficient voltage to one or more output circuits. Watch for malfunctioning sensors, actuators, controllers, or LED drivers connected to the unit.
Flickering lights or intermittent operation: Flickering lights or lights turning on and off unexpectedly connected to the PSH500A could indicate voltage fluctuations or instability.
HVAC system malfunctioning: In VAV systems, a faulty power supply could disrupt damper control, communication with other system components, or lead to temperature control issues.
Unusual noise or vibrations: If you hear buzzing, humming, or other unusual noises coming from the power supply, it could be a sign of internal component failure.
Safety Concerns:
Tripped circuit breakers: Frequent tripping of circuit breakers, especially on individual circuits, indicates an overload or potential fault within the PSH500A.
Burning smell: A burning smell emanating from the power supply is a serious indicator of overheating or electrical malfunction. Immediately shut down the system and disconnect power if you experience this.
Visible damage: If you notice any physical damage to the enclosure, wiring, or internal components (accessible through the removable terminal block compartment), stop using the power supply and seek professional help.
Additional Warning Signs:
Dimmed or flickering LED indicators: While individual circuit indicators can be helpful, dimmed or flickering lights on any output could indicate issues with that specific circuit.
Error codes or indicator lights: Some models of the PSH500A might display error codes or have additional LED indicators that provide clues about the source of the problem. See the handbook for detailed explanations of codes and instructions for troubleshooting.
Increased energy consumption: In some cases, a faulty power supply might operate inefficiently, leading to higher energy bills.
Remember:
Safety first! If you suspect any safety concerns like burning smells, tripping circuit breakers, or visible damage, immediately shut down the system and disconnect power. Get in touch with a licensed electrician for maintenance and inspection.
The PSH500A should not be repaired or diagnosed by you. It could be dangerous to work with electrical equipment if you lack the necessary skills and understanding.
