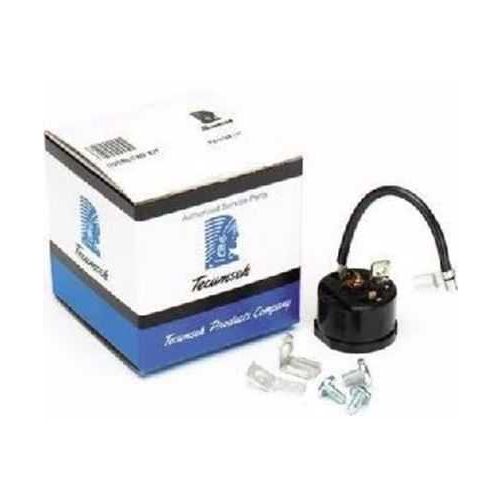

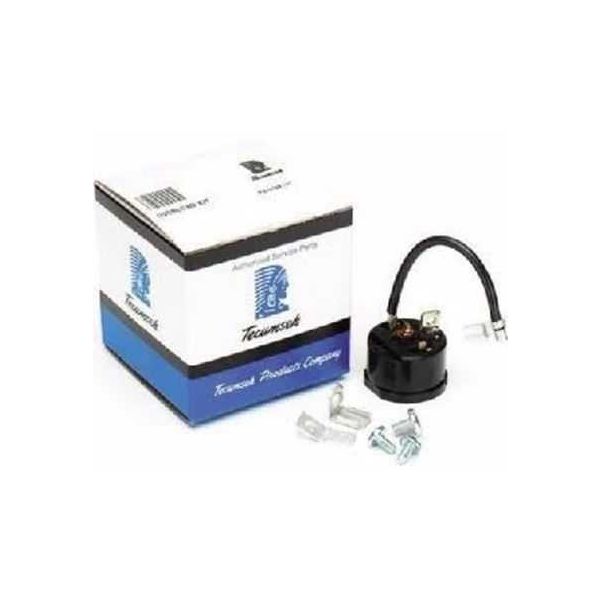

Tecumseh K90-56 Overload Kit

Rating:
5 5 3
3  Reviews Add Your Review
Special Price $41.26 Regular Price $53.64
In stock
SKU
K90-56

The Tecumseh K90-56 Overload Kit is an indispensable component utilized in HVAC systems to safeguard compressors against electrical overload situations. Designed specifically to work with Tecumseh compressors, this kit includes an overload relay along with other necessary installation components. The compressor motor's electrical current is constantly monitored by the overload relay in order for it to function. In order to shield the compressor from harm, the relay quickly cuts off the power supply if it notices any surges or excessive current. The K90-56 Overload Kit, whether used in air conditioners, refrigeration systems, or heat pumps, guarantees safe and dependable compressor performance. Its well-thought-out design and sturdy build increase system longevity and performance while lowering the chance of compressor failure and requiring less maintenance.

Add to Wish List
HVAC Controls, Overload Relay
Manufacturer:
https://www.partshnc.com/media/catalog/product/k/9/k90-56.jpg
Manufacturer Name: Tecumseh
Product Number: K90-56
OEM Part Number: K90-56
Product Description:  An overload kit is an essential component designed to protect the HVAC system's compressor from electrical overloads and potential damage.  The core feature of an overload kit is thermal protection. It includes a temperature-sensitive device that monitors the compressor's temperature. Many overload kits have an automatic reset function. Once the temperature returns to a safe range, the overload kit resets itself, allowing the compressor to resume normal operation. Some overload kits offer a manual reset option for added safety. This requires manual intervention by a technician to reset the overload, which can be useful for diagnosing and addressing potential issues.  In the event of an overload or overheating, the Tecumseh Compressor K90-56 Overload Kit can disconnect the electrical power to the compressor. This action prevents further electrical damage to the system. The overload relay is the primary component of the kit and is responsible for monitoring the electrical current flowing through the compressor motor. It trips or opens the circuit when it detects excessive current, protecting the motor from damage. A run capacitor is included in the overload kit. The run capacitor stores and releases electrical energy to assist in the continuous operation of the compressor motor. The kit may come with a pre-wired harness or set of wires that connect the overload relay, start relay, and run capacitor to the compressor and the electrical supply. The Overload Kit For Tecumseh Part# K90-56 is an integral component in HVAC systems that offers vital protection to the compressor motor against electrical overload and overheating conditions.

Key features of the Tecumseh Compressor K90-56 Overload Kit are:

  • Overload Protection
  • High-quality components to ensure reliable and consistent performance
  • Diagnostic Features
  • Compact Design
  • Temperature Sensing
Weight:0.08lbs/36.29g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]



Reviews 3
Write Your Own Review
You're reviewing:Tecumseh K90-56 Overload Kit
Your Rating
Related Posts
  1. International Builder's Show 2024
  2. AHR Expo 2024 In Chicago
  3. What is an HVAC Duct, Different Types and Installation of Duct
  4. Top HVAC Tips for a Cozier Christmas: Explore Now
Product Questions (5)
Customer Questions
Do overload kits require regular maintenance or calibration?

Overload kits are designed to function without regular maintenance or calibration. However, periodic visual inspections are advisable to ensure all components are in good condition.

Can I use an overload kit in conjunction with other protective devices, such as surge protectors, to enhance my HVAC system's safety?

Using additional protective devices like surge protectors is a good practice. They complement the overload kit by providing comprehensive protection against various electrical issues.

Can an overload kit help prevent short cycling of my HVAC compressor?

Overload kits primarily protect against electrical overload conditions. Short cycling is typically managed by other control components, such as thermostats and pressure switches.

What maintenance is required for the Tecumseh K90-56 Overload Kit?

Regularly inspect the overload kit for signs of corrosion, overheating, or physical damage. Ensure connections are secure and replace any worn components. Proper maintenance supports protect the compressor from electrical faults. Always disconnect power before servicing the kit.

What are common issues with the Tecumseh K90-56 Overload Kit?

  • Compressor failing to start or run.
  • Tripping due to overheating.
  • Loose or corroded electrical connections.
  • Intermittent operation or false trips.

Installation Steps

Step1: Turn off power to the compressor for safety.

Step2: Disconnect the compressor wiring and remove the old overload system.

Step3: Position the new overload kit onto the compressor terminals.

Step4: Reconnect all wires securely according to their original positions.

Step5: Ensure the kit is seated properly and not loose.

Step6: Restore power and test the compressor for proper operation.

Step7: Verify the system starts and runs without overheating or tripping.
