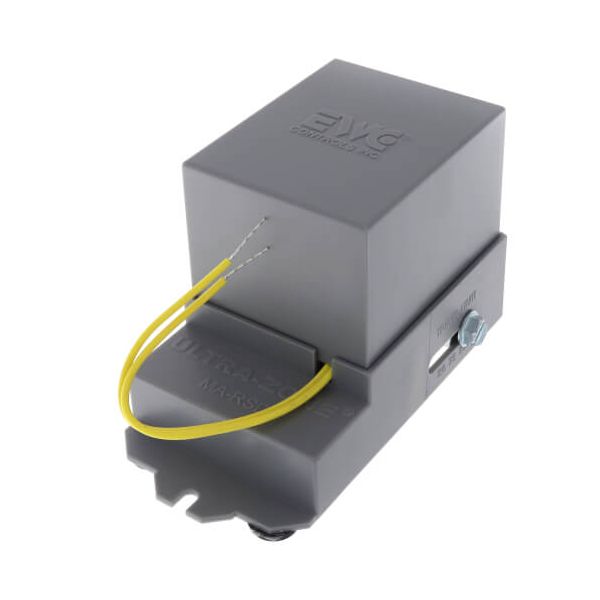

Airflow zoning and ventilation equipment use damper actuators to control the position of dampers within an HVAC air-distribution system. The EWC Controls MA-RSD is a 24V two-position spring-return damper motor actuator designed to move a connected damper between its controlled positions. Its spring-return mechanism moves the damper toward its designated return position when electrical power is removed. The actuator is used in applications including air handlers, VAV boxes, and ventilation systems.
Two-Position Actuation and Spring Return:
A damper actuator converts electrical input into mechanical movement to change the position of an attached air damper. The MA-RSD operates in a two-position arrangement, providing movement between the damper's open and closed positions. When electrical power is removed, its spring-return mechanism moves the damper toward its designated return position. This two-position, spring-return configuration defines the actuator's primary operating function.
Airflow Regulation Within HVAC Systems:
The actuator's equipment-level role is to control damper position so airflow can be directed or restricted according to the HVAC system's operating requirements. It works with the connected damper and equipment control system to change the airflow path between its two operating positions. In air handlers, VAV boxes, and ventilation systems, this damper movement supports zone and air-distribution control.
Replacement Guidelines:
Consider replacing the EWC Controls MA-RSD when the connected damper no longer responds correctly to the equipment's control operation. Replacement may also be appropriate when the actuator does not move the damper between the required positions or the spring-return mechanism no longer provides the required return movement. Physical damage to the actuator or its operating mechanism may also warrant replacement. The replacement should match the existing application and required 24V, two-position, spring-return configuration.
Common Failure Symptoms:
- Damper remains in one position instead of moving between its controlled positions
- Intermittent damper movement
- Failure to return toward the designated position after power is removed
- Unusual actuator noise during operation
- Incomplete or inconsistent damper movement
Equipment Compatibility:
The EWC Controls MA-RSD is used for damper-control applications in air handlers, VAV boxes, and ventilation systems. Before purchasing, verify the equipment or damper application and match the required actuator characteristics, including the 24V supply, two-position operation, spring-return configuration, and other applicable requirements.
Technical Specifications:
Part Identification:
Brand: EWC Controls
Part Number: MA-RSD
Product Type: Damper Motor Actuator
Electrical:
Voltage: 24V
Control:
Number of Positions: 2
Fail-Safe Mode: Spring-Return
