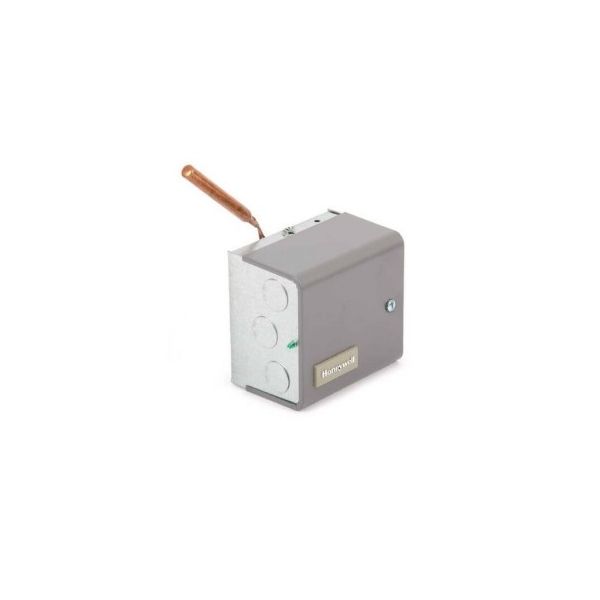

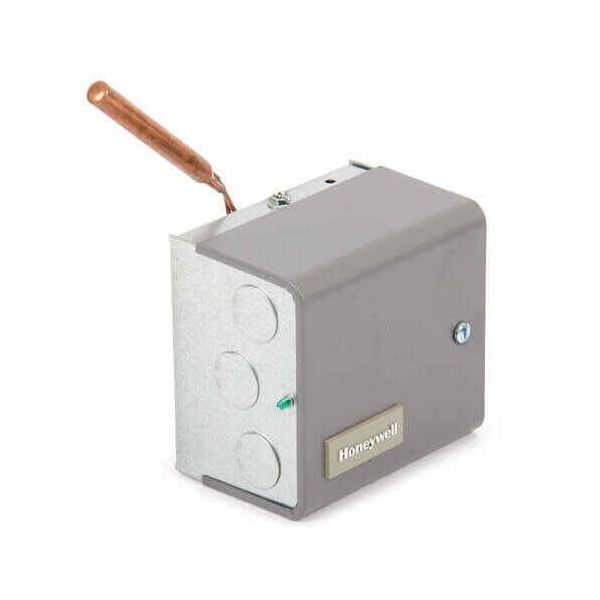

The Resideo L4081A1023 Aquastat Controller functions as a high and low water temperature controller for hydronic heating systems to maintain efficient boiler operation. The SPST switching mechanism enables this to manage burners and circulators through temperature settings thus protecting systems from overheating and damage. The multi-function controller operates with residential and commercial boilers to improve energy efficiency and maximize equipment durability and deliver reliable heat performance. The dependable structure of this system improves boiler safety while operation and enhances system performance efficiency.
The Resideo L4081A1023 is a multi-function aquastat controller designed for use in hydronic heating systems like boilers and hot water heaters. It acts as a temperature control device, ensuring efficient and safe operation of the system by monitoring water temperature and activating or deactivating the boiler or pump based on pre-set settings.
Key Features:
Dual High and Low Limit Control: Allows you to set separate high and low temperature thresholds for activating and deactivating the boiler. This flexibility ensures optimal temperature regulation and prevents overheating or underheating.
SPST Switch Outputs: Provides two single-pole, single-throw switch outputs for controlling the boiler and pump independently or in conjunction.
Immersion Type Sensor: The liquid-filled sensor accurately measures the water temperature within the boiler or tank, providing reliable feedback for the controller.
Horizontal Mounting: The controller is designed for horizontal installation, allowing for easy integration into various boiler and tank configurations.
Separate Dial Adjustments: Each switch has its own dedicated dial for precise and independent setting of high and low temperature limits.
10 Degree High Limit Differential: This feature helps prevent boiler cycling (frequent on/off cycles) by requiring a 10-degree temperature rise above the set high limit before the boiler turns off again.
10-25 Degree Low Limit Differential: This adjustable differential allows you to set the minimum temperature difference between the low limit and the desired operating temperature, optimizing boiler efficiency and preventing unnecessary heating.
Push-in Terminals: These quick-connect terminals simplify wiring and installation.
Applications:
Boilers and hot water heaters in residential and commercial buildings.
Hydronic heating systems utilizing forced hot water circulation.
Industrial process applications requiring temperature control of water-based systems.
Benefits:
Precise Temperature Control: Ensures comfortable heating and hot water availability by maintaining desired water temperatures.
Improved Efficiency: minimizes needless energy use and boiler cycles by using optimal temperature management.
Enhanced Safety: Prevents overheating or underheating of the system, minimizing potential risks.
Easy Installation and Operation: Straightforward wiring and dedicated dials for intuitive temperature setting.
Versatility: Suitable for a wide range of hydronic heating applications.
Signs of a Faulty L4081A1023 Dual Aquastat Horizontal Mount Resideo:
Identifying signs of a faulty Resideo L4081A1023 multi-function aquastat controller is crucial for maintaining optimal performance and safety in your hydronic heating system.
Temperature Regulation Issues:
Excessive boiler cycling: The boiler frequently turns on and off within a short period, indicating that the aquastat is not accurately controlling the water temperature.
Inconsistent water temperature: The water in the boiler or tank doesn't reach or maintain the desired temperature set on the controller.
Overheating or underheating: The system reaches excessively high or low temperatures, potentially causing discomfort, damage, or safety risks.
Electrical and Control Problems:
Unresponsive dials or switches: The controller dials don't adjust properly, or the switches don't activate the boiler or pump when expected.
Visible damage: Cracks, burns, or corrosion on the controller housing or wiring could indicate internal component failures or electrical issues.
Unusual noises: Clicking, buzzing, or humming sounds coming from the controller might signify internal malfunctions or loose connections.
Other Warning Signs:
Water leaks: Leaks around the sensor well or elsewhere in the system could indicate improper installation, damaged components, or pressure problems.
System malfunctions: The boiler or pump doesn't function properly, potentially due to issues with the aquastat's control signals.
Safety concerns: If you suspect overheating, leaks, or other safety hazards, immediately shut down the system and contact a qualified technician.
Remember:
Do not attempt to diagnose or repair the Dual Aquastat Horizontal Mount L4081A1023 yourself. It has water connections and electrical components, and handling it incorrectly could be dangerous.
Always consult a qualified technician familiar with hydronic heating systems and aquastat controllers.
Additional Tips:
Regularly monitor the water temperature in your boiler or tank to ensure it stays within the desired range.
Listen for unusual noises or leaks around the controller and system components.
Schedule regular maintenance checks for your hydronic heating system, including the Dual Aquastat Horizontal Mount L4081A1023 controller.
