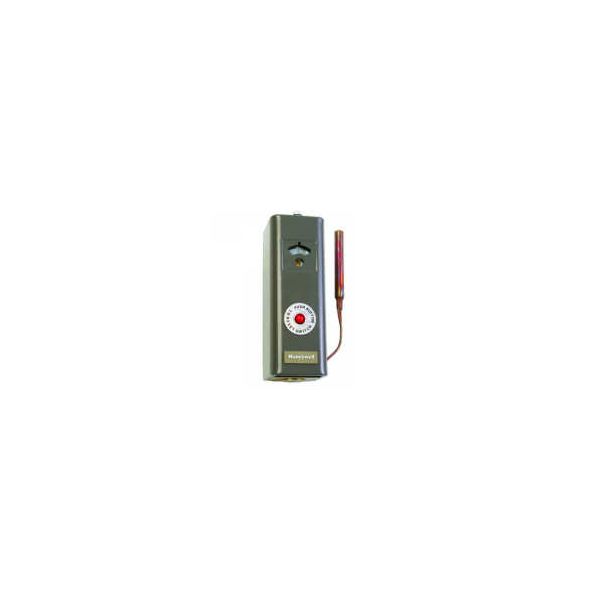

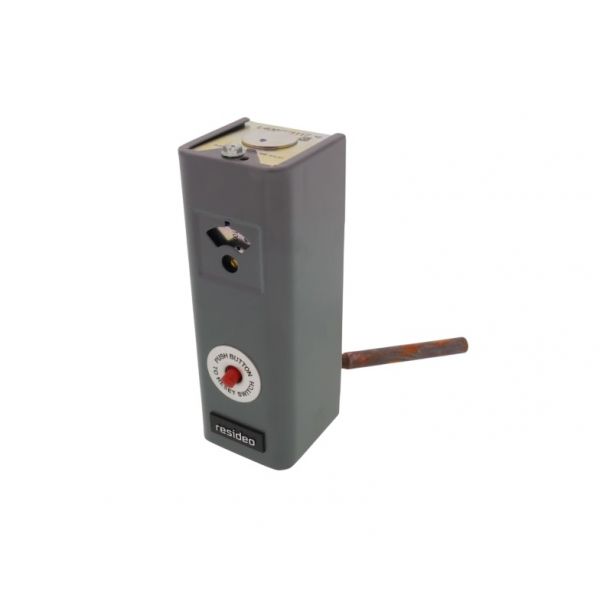

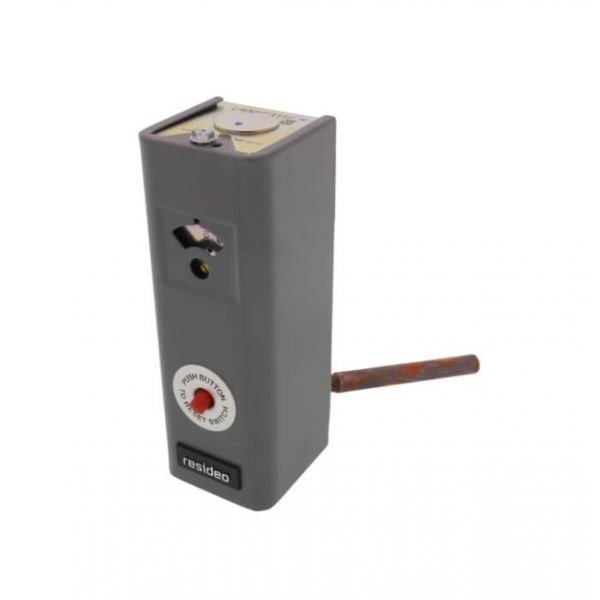

The Resideo L4006E1117 High Limit Aquastat is used to control the temperature in hydronic heating systems, boilers, and other HVAC systems. It works within the range of 100°F to 240°F and it has the capability of switching off the heating equipment in case the temperatures are high. It has a manual reset button which helps to avoid the automatic reboot, making it safer and more reliable. This is because the 3/4” NPT connection enables easy installation of the component in different heating systems. This aquastat also prevents overheating of the system minimizing the chances of damaging the equipment and enhancing the efficiency of the system.
The Resideo L4006E1117 is a high-limit aquastat controller primarily used in boilers, water heaters, and other hydronic systems. It plays a crucial role in maintaining safe and efficient operation by regulating the water temperature within a set range. This is a thorough explanation of its characteristics and capabilities, which are used to monitor and control liquid temperature in a variety of commercial and industrial applications. It functions as a safety device by automatically shutting off the heating element if the temperature exceeds a preset limit, preventing overheating and potential damage to the equipment.
Key Features:
Temperature range: 100°F to 240°F (38°C to 116°C)
Open rise operation: The electrical circuit automatically opens as the water temperature reaches the set point, shutting off the heating element and preventing overheating.
Manual reset: After the temperature drops below the set point, the aquastat can be manually reset to resume operation.
Totally enclosed Micro Switch™: Provides reliable and efficient operation with snap-acting switches.
Visible control point scale and external adjustment screw: Simple to set to the ideal temperature.
Horizontal or vertical insertion of the sensing element: permits many installation configurations to be flexible.
Direct or well immersion of the sensing element: can be applied in a variety of ways based on the situation.
UL limit rated device: guarantees adherence to industry standards and safety.
Benefits:
Prevents overheating and system damage: The high-limit function protects the system from potential failures caused by excessive temperatures.
Improves energy efficiency: Lowering running expenses and energy usage can be achieved by keeping water at the ideal temperature.
Enhances safety: The manual reset feature allows for safe restart after activation, preventing uncontrolled heating cycles.
Versatile and reliable: The Aquastat M/R 100-240 L4006E1117 is suitable for various applications and provides dependable performance.
Signs of a Faulty L4006E1117 Aquastat M/R 100-240F Resideo:
The Resideo L4006E1117 is a crucial safety component in hydronic systems, preventing overheating and potential equipment damage. However, like any device, it can malfunction over time. Here are some signs to watch out for:
1. Overheating:
Excessive water temperature: This is the most obvious sign of a faulty aquastat. If your boiler, water heater, or other hydronic system reaches temperatures significantly exceeding the set point, the Aquastat M/R 100-240F L4006E1117 might not be functioning properly.
2. System malfunctions:
Frequent boiler cycling: If your boiler repeatedly turns on and off within a short period, it could indicate the aquastat is malfunctioning and not accurately regulating the temperature.
Failure to maintain desired temperature: If the system consistently falls below or rises above the desired temperature range, the aquastat might not be controlling the water temperature effectively.
3. Physical signs:
Leaking: Visible leaks around the sensing element or housing could indicate internal damage or a faulty seal.
Corrosion: Rust or corrosion on the aquastat body or sensing element can compromise its functionality and accuracy.
4. Electrical issues:
Blown fuse: If the aquastat's associated fuse is frequently blowing, it could be due to electrical faults within the unit.
Burning smell: A burning smell emanating from the aquastat is a serious warning sign and indicates a potential electrical malfunction.
Remember:
Never attempt to diagnose or repair a faulty aquastat yourself. Always consult a qualified technician for proper inspection and service.
Ignoring signs of a faulty aquastat can lead to serious consequences, including equipment damage, overheating, and even safety hazards.
Additional tips:
Regularly check the water temperature in your system to monitor its performance.
Schedule preventive maintenance checks for your hydronic system, including the Aquastat M/R 100-240 L4006E1117.
Learn the operating handbook and safety precautions for the particular hydronic system and aquastat model that you own.
Choose the best HVAC equipment parts and supplies from PartsHNC!
