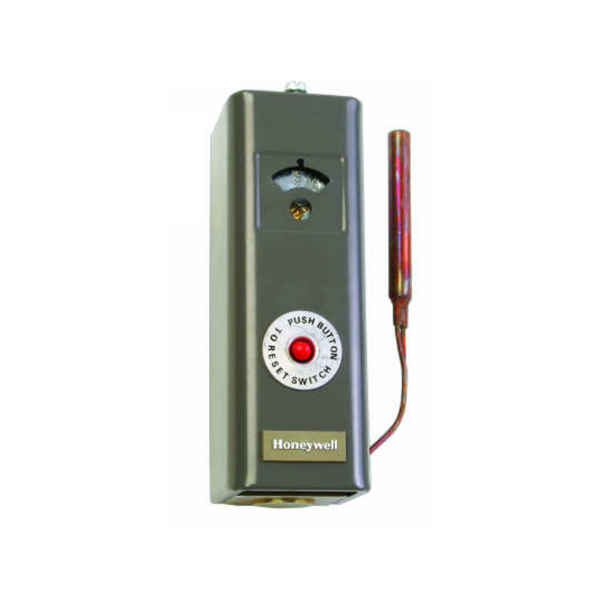

Resideo L4006E1109/B Manual Reset Aquastat Controller 130°F - 270°F Openrise
Special Price $162.95 Regular Price $187.39
In stock
SKU
L4006E1109/B
The Resideo L4006E1109/B Manual Reset Aquastat Controller is a high limit temperature control equipment that has been designed to operate in HVAC systems. This controller operates between a temperature range of 130°F to 270°F and has a manual reset feature to prevent system danger by shutting down the equipment when temperatures reach the set limit. The SPST switching mechanism of the controller breaks the circuit when the temperature increases to prevent damage, and offers accurate control. The copper bulb is 3/8" x 2-7/8" and the capillary length varies from 1-1/2" to 3".
Manufacturer:
Specifications
- Type: Manual Reset High Limit Aquastat Controller
- Hazmat Information: UN 1294, TOLUENE, 3, II
- Application: High Limit, Manual Reset: Dimensions: Case--5-5/8" high x 2" wide x 2-1/8" deep
- Mounting: Horizontal or Vertical
- Approvals, Underwriters Laboratories Inc: UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
- Approvals, Canadian Standards Association: Certified- File No. LR95329-1
- Temperature Range: 130°F to 270°F
- Bulb Size: 3/8" x 2-7/8" Copper
- Differential Temperature: Manual Reset
- Switching Action: SPST, contacts break on temperature rise
- Approvals, American Gas Association: AGA Certified
- Capillary Length: 1-1/2" to 3"
