The Lochinvar & A.O. Smith 100286274 Integrated Contro Board is an integrated control unit for selected Lochinvar and A.O. Smith water heaters and boilers. This component controls educal systems elements such as starting, heat control, and security systems. It enhances the system effectiveness through offering control and diagnosis of the system to guarantee the best heating. Designed for both residential and commercial HVAC systems, it increases energy effectiveness, minimizes equipment failure, and increases the life of equipment by providing precise control of critical system functions.

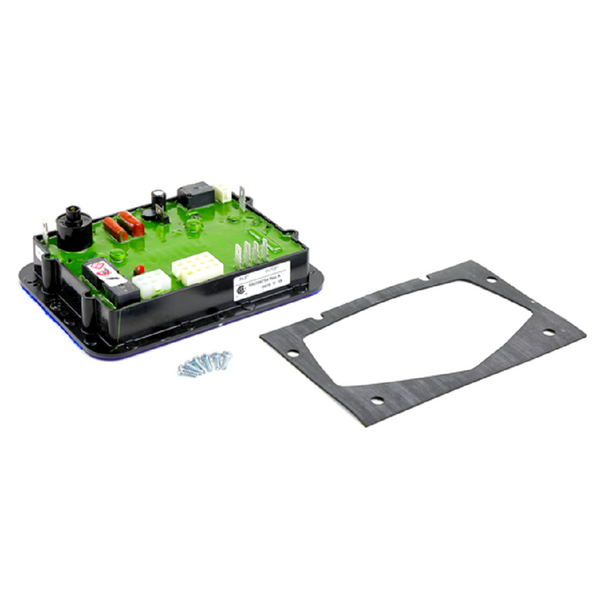

Integrated Control Lochinvar & A.O. Smith 100286274
A.O. Smith and Lochinvar water heaters require the integrated control board 100286274 as a necessary component. It serves as the system's brains, managing and guiding numerous procedures to guarantee secure and effective operation. The integrated control board (Lochinvar & A.O. Smith part number 100286274) is compatible with a wide range of Lochinvar and A.O. Smith water heaters. This control board immediately replaces the old Lochinvar 607123 and A.O. Smith 772613 control boards. The updated control board's improved functionality and revised look make it a more trustworthy and efficient choice for your water heater. Part number 100286274 is an integrated control board designed specifically to be used with A.O. Smith and Lochinvar water heaters.
Key features:
Secure Communication Protocols: Utilizes secure communication protocols to safeguard communication between the control unit and other components, minimizing the risk of unauthorized access or data breaches.
Password Protection: Gives users the option to create passwords to gain access to the control unit's settings, enhancing security and preventing unwanted changes.
Limited Remote Access: If remote access is available in your model, it may be configurable with restrictions and require proper authentication for secure operation.
Regular Security Updates: The manufacturer may provide periodic security updates for the control unit's firmware to address potential vulnerabilities and ensure ongoing protection.
Compatibility:
Works seamlessly with various Lochinvar and A.O. Smith water heater models.
Comprehensive Control:
Manages water temperature precisely, ensuring consistent hot water delivery.
Regulates burner operation for efficient fuel usage and optimized performance.
May control additional functions depending on the specific water heater model (e.g., pump operation, safety features).
User-Friendly Design:
Simple installation procedure that frequently only needs rudimentary equipment and no technical knowledge.
Simple controls that make operating and setting adjustments simple.
Clear display (in some models) for convenient monitoring of water temperature, burner status, and other relevant information.
Performance Enhancements:
Contributes to improved water heater efficiency by optimizing burner operation and minimizing energy waste.
may increase the longevity of your water heater by guarding against overheating and guaranteeing optimal operation.
Offers precise temperature control, leading to more consistent and comfortable hot water showers and baths.
Benefits:
Consistent Water Temperature: The integrated control unit precisely regulates the water temperature in your water heater, ensuring you always have hot water when you need it. This might be very helpful for households who use a lot of hot water.
Improved Burner Efficiency: The unit optimizes burner operation, leading to more efficient fuel usage and lower energy bills. Over time, this can reduce your energy expenses.
Extended Water Heater Lifespan: By preventing overheating and ensuring proper functioning, the integrated control unit can help extend the life of your water heater. You may be able to avoid paying more for replacements later on.
Precise Temperature Control: The unit offers precise temperature control, which can lead to more consistent and comfortable hot water showers and baths.
Additional Features: Some models of the integrated control unit may also include features such as self-diagnostics, multiple operating modes, freeze protection, and remote control capabilities.
Signs of faulty Lochinvar & A.O. Smith 100286274 Integrated Control:
Temperature Issues:
Fluctuating water temperature: This is the most common sign of a faulty control unit. If your water temperature is inconsistent or unpredictable, it suggests the unit isn't regulating temperature properly.
Water not reaching desired temperature: If the water never reaches the set temperature, it could indicate a problem with the control unit's ability to communicate with the burner or a malfunction in the burner itself.
Overheating: If the water gets excessively hot, even when set to a lower temperature, it's a serious safety concern and requires immediate attention. This can be the result of a malfunctioning control unit that can't control how the burner operates.
Operational Abnormalities:
Unusual noises: Buzzing, clicking, or other strange noises coming from the control unit can indicate internal component issues.
Error codes or flashing lights: Some models may display error codes or have indicator lights that flash when there's a problem. Consult the user manual for specific meanings of these codes/lights.
Unresponsive buttons or display: If the buttons on the control unit don't respond or the display malfunctions, it suggests electrical problems within the unit.
Performance Issues:
Increased energy bills: If your energy bills spike significantly, it could be due to the control unit not optimizing burner efficiency, leading to higher fuel consumption.
Frequent burner cycling: The burner shouldn't cycle on and off constantly. If this occurs often, there may be a communication issue between the burner and the control unit.
Water leaks around the control unit: Leaks can damage the unit and surrounding components.As soon as you discover any leaks, look into the source.
Additional Considerations:
Age of the unit: Like any electronic component, integrated control units have a lifespan. When the anticipated life of your unit approaches its end (usually ten years), think about replacing it early to prevent problems.
Regular maintenance: Regular inspection and maintenance as per the manufacturer's recommendations can help identify minor issues before they become major problems.
Remember: If you notice any of these signs, don't attempt to repair the Integrated Control 100286274 unit yourself. Contact a qualified HVAC technician or plumbing professional to diagnose the problem and ensure the safety of your water heater and personnel. Depending on the severity of the problem, they can offer advice on replacement or repair.
