ICM Controls ICM493 Monitor with Surge Suppress is a high performance system that protects HVAC system from phase loss, phase reversal and voltage imbalances. It monitors incoming power all the time and disconnects equipment if harmful conditions are detected, from costly damage. It is ideal for commercial HVAC systems, air conditioning units, refrigeration equipment and compressors and helps to extend system longevity and reliability. A layer of protection against power spikes is provided by the built in surge suppression. It is easy to install and has LED diagnostics to simplify maintenance. With its influence on system efficiency, lowering downtime, and protecting significant components, this phase monitor should be considered as an integral part of any HVAC systems.

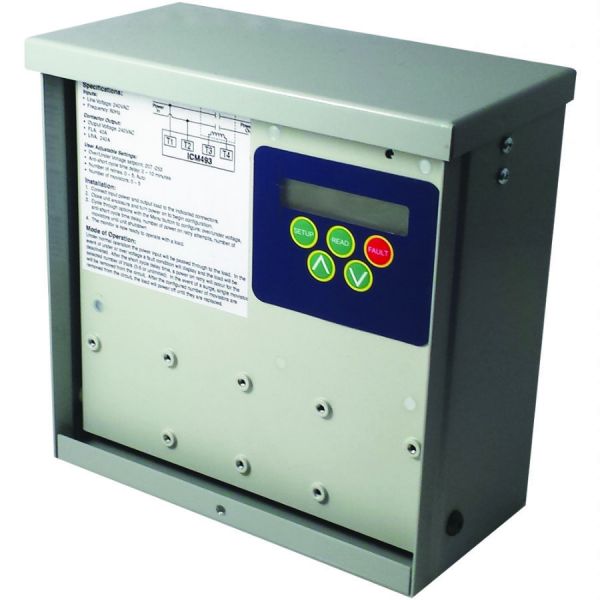

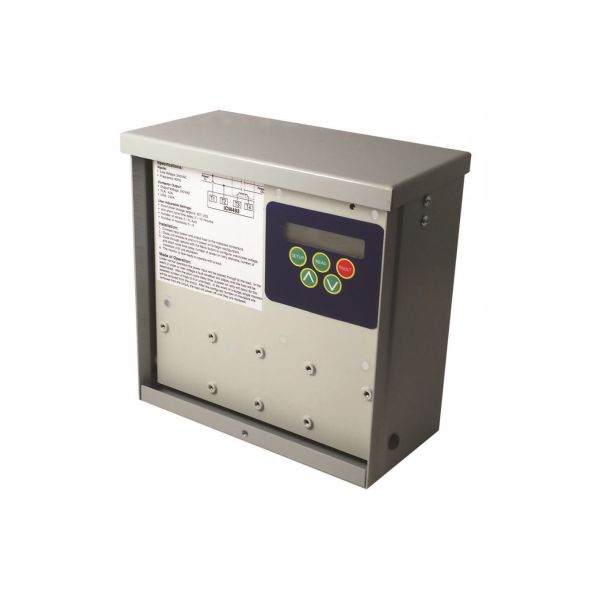

Ignition Control Module Controls ICM493 Phase Monitor With Surge Suppress
ICM Controls offers a strong and adaptable single-phase line voltage monitor, the ICM493. It is intended to guard against various electrical problems for expensive equipment such as mini-splits, inverter compressors, and other condensing units. Designed to protect expensive single-phase equipment from the damaging effects of power fluctuations and surges, the ICM493 is a powerful and sophisticated single-phase line voltage monitor with inbuilt surge protection. With built-in surge protection, the ICM493 is a sophisticated single-phase line voltage monitor that is intended to protect expensive equipment from the damaging effects of power surges, voltage fluctuations, and other electrical problems. This sturdy and dependable device ensures the smooth functioning of your equipment and provides peace of mind for applications such as mini-split systems, inverter compressors, and other condensing units.
Key features:
Protection:
Over/under voltage: Protects against voltage fluctuations outside the safe operating range for equipment (adjustable set points).
Rapid short cycling: Prevents damage from frequent power cycling caused by transients.
High-power surges: Equipment is protected from power surges and lightning strikes by integrated surge arresters.
Brownouts & power outages: Monitors voltage drops and disconnects equipment automatically to prevent damage.
Startup of large equipment: Handles voltage dips during motor startup.
Power grid faults & short circuits: Provides additional protection against unexpected electrical events.
Functionality:
Easy installation: Mounts directly between service disconnect and the condensing unit.
Built-in contactor (40A or 60A): Automatically disconnects equipment based on voltage set points.
Programmable voltage set points: Define acceptable voltage range for your equipment.
Fault history: Records and stores recent faults for troubleshooting.
Easy-view backlit display: Monitors voltage, current, and operating status.
Waterproof enclosure (NEMA 3R): Suitable for outdoor installations.
Benefits:
Enhanced equipment protection: Safeguards your valuable equipment from costly damage caused by power irregularities.
Improved system reliability: Minimizes downtime and maintenance costs by preventing equipment failures.
Peace of mind: Make sure your equipment is operating safely and dependably so you can concentrate on your main business activities.
Versatile applications: Suitable for various single-phase equipment, including mini-splits, air conditioners, refrigeration units, and more.
Additional Information:
Refer to the manufacturer's website or product manual for detailed specifications, wiring diagrams, and installation instructions.
To guarantee appropriate selection and installation for your particular application, think about speaking with a licensed electrician.
Signs of faulty Phase Monitor With Surge Suppress ICM493 Ignition Control Module Controls:
Physical Signs:
Visible damage: Look for cracks, dents, or burns on the enclosure, which could indicate physical impact or internal overheating.
Loose connections: Check for any loose wires or connections, which can disrupt power flow and cause malfunctions.
Faulty contactor: If the contactor clicks but the equipment doesn't turn on, it could be faulty and require replacement.
Operational Issues:
Frequent tripping: If the Phase Monitor With Surge Suppress ICM493 disconnects your equipment frequently, even within the set voltage range, it could indicate a miscalibration or internal malfunction.
No output: If the ICM493 doesn't provide any power output to the connected equipment, it could be due to a faulty contactor, internal component failure, or a tripped breaker on the incoming line.
Unusual readings: If the voltage or current readings on the display appear erratic or significantly outside the expected range, it could be a sign of internal malfunction.
Error codes: Some models of the ICM493 might display error codes on the screen. For detailed code-based troubleshooting instructions, refer to the user handbook.
Equipment Issues:
Equipment malfunctioning: If your connected equipment starts to malfunction or exhibit unusual behavior after the ICM493 is installed, it could be due to the ICM493 not providing proper power or protection.
Overheating: If your equipment is overheating more frequently than usual, it could be a sign that the ICM493 isn't properly regulating voltage or has internal issues that are affecting power delivery.
Additional Tips:
For details on specific troubleshooting procedures and explanations of problem codes, consult the user handbook.
If you are uncertain about the root cause of the problem, get in touch with ICM Controls technical support for assistance.
Invest in a surge protector for additional protection against unexpected power surges.
Regularly inspect the ICM493 for any obvious signs of damage or loose connections.
