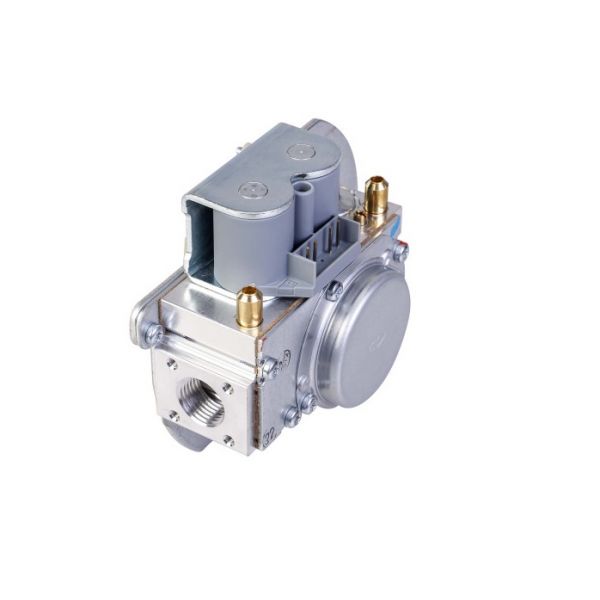

HTP 7250P-449 Dungs Gas Valve T80M

Special Price $433.34 Regular Price $481.01
Out of stock
SKU
7250P-449
The HTP 7250P-449 Dungs Gas Valve T80M is used to control the flow of natural gas or propane to the burner assembly of HVAC systems. This concept is to adjust the amount of gas being fed in depending on the control inputs of the thermostat and safety parts, to ensure that fuel is fed to the combustion chamber to produce sufficient heat. It is installed in compatible furnaces, boilers, and heating units to assist in the safe and responsive delivery of fuel. The fuel control section helps the equipment to have controlled combustion and steady performance under normal heating cycles.
Manufacturer:
https://www.partshnc.com/media/catalog/product/7/2/7250p-449.jpg

Product Overview:
Within the fuel-delivery assembly of high-efficiency heating equipment, the gas valve regulates the flow of combustible fuel to the burner during heating cycles. The HTP 7250P-449 Dungs Gas Valve T80M serves as an electromechanical control and safety barrier between the incoming gas line and the combustion chamber. Designed for select HTP boilers and water heaters, this component responds to low-voltage signals from the main control board to admit fuel in precise operational sequences. By maintaining tight shut-off capabilities and precise flow control, the valve supports proper flame establishment and stable thermal output across demanding equipment operational demands.

Gas Valve Operation:
As the boiler's control sequence calls for fuel, the Dungs gas valve manages the internal passage through which gas reaches the combustion system. Its valve mechanism responds to the required operating condition to regulate fuel movement within the gas-control assembly. This action aligns gas availability with the equipment's burner demand.

T80M Boiler Gas Control:
Within the boiler's fuel-control arrangement, the gas valve coordinates gas availability with the combustion system. Its position between the gas supply and burner-side components allows the equipment's controls to manage fuel delivery according to the required heating condition. This integrates the valve with the boiler's overall gas-control sequence.

Replacement Guidelines:
Replacement of the gas valve is appropriate when internal mechanical wear, coil failure, or physical degradation prevents the valve from opening, modulating, or closing completely. For HTP 7250P-449, relevant conditions may include internal solenoid coil failure, an open or shorted electrical circuit, or failure of the valve to seat tightly when de-energized. Replacing the component restores the equipment's ability to manage fuel flow during heating operation.

Common Failure Symptoms:

  • Burner failing to ignite during the sequence of operation.
  • Total loss of equipment heating output.
  • Intermittent ignition lockouts or burner flame loss.
  • System diagnostic fault codes indicating gas valve circuit or communication errors.
  • Burner shutting down immediately after ignition attempts.

Equipment Compatibility:
The HTP 7250P-449 Dungs Gas Valve T80M is used with applicable HTP boilers and water heaters. Before purchasing, verify the equipment model and existing part number.

Technical Specifications:
Brand: HTP
Part Number: 7250P-449
Product Type: Gas Valve
Manufacturer Series: Dungs T80M

Write Your Own Review
You're reviewing:HTP 7250P-449 Dungs Gas Valve T80M
Your Rating
Customer Questions
What maintenance is required for the HTP 7250P-449 Dungs Gas Valve?

Regularly inspect the valve for leaks, corrosion, and loose connections. Ensure proper operation by testing control signals and cleaning debris around the valve body. Following safety precautions when handling gas components is essential.

What are common issues with the HTP 7250P-449 Dungs Gas Valve?

  • Gas leakage or failure to open/close.
  • Valve sticking or slow response.
  • Corrosion on connections or body.
  • Erratic gas flow affecting burner performance.

How does the HTP 7250P-449 Dungs Gas Valve control fuel delivery in compatible boiler equipment?

It regulates gas passage to the burner according to the equipment's fuel-control sequence.

How does the HTP 7250P-449 Dungs Gas Valve support the boiler's burner system?

It coordinates fuel availability between the gas supply and burner assembly as part of the boiler's controlled combustion process.

Which HTP boiler applications are compatible with the 7250P-449 Dungs Gas Valve?

The gas valve is identified for compatible HTP Munchkin T80M and MC80 boiler applications.

What should be checked when selecting a replacement HTP 7250P-449 Dungs Gas Valve?

The existing valve identification, boiler model, fuel configuration, and applicable manufacturer parts documentation should be checked before selection.

How should the HTP 7250P-449 Dungs Gas Valve be maintained?

The gas valve should be inspected when boiler operation indicates a possible fuel-control issue, with servicing performed according to the applicable manufacturer documentation.

Installation Steps

Step 1: Turn off the gas supply and power to the unit before installation to prevent fire or shock.

Step 2: Locate the existing gas valve and carefully disconnect all gas and electrical connections.

Step 3: Remove the old valve from its mounting position.

Step 4: Install the new valve, ensuring proper alignment and secure mounting.

Step 5: Reconnect gas and electrical connections according to manufacturer specifications.

Step 6: Slowly restore gas supply and check for leaks using a proper gas detector.
