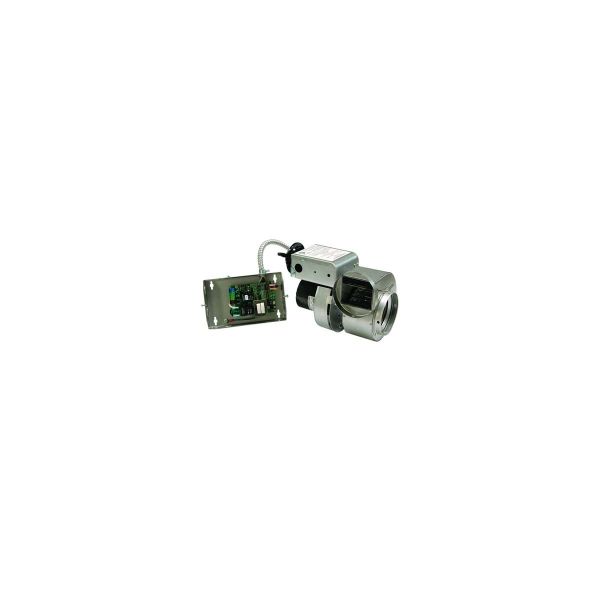

The Tjernlund Products HS1 Gas Sidewall Power Venter Fan operates at 3000 RPM under 115V to provide safe gas exhaust from heating equipment. This power vent operate in gas-fired furnaces, boilers, and water heaters to remove exhaust gases properly while eliminating the necessity of traditional chimney systems through sidewall exhaust. The fan combines durable materials with a strong motor to provide better safety measures and prevent backdrafts and improve fuel efficiency. The HS1 enables proper airflow and minimizes condensation formation, which leads to longer equipment life. It provides easy installation while maintaining itself and offering necessary venting performance enhancement for residential and commercial HVAC systems.
The Tjernlund Products HS1 is a sidewall power venter fan. It's used in residential and light commercial applications to efficiently vent combustion gases from furnaces, boilers, water heaters, and unit heaters through exterior walls instead of traditional chimneys. It's a safe and efficient solution for situations where traditional chimney venting isn't feasible or desirable. a gas sidewall power venter fan intended for natural gas, LP, or oil-fired equipment venting in homes and light commercial buildings. It provides a time, money, and material-saving, safe substitute for conventional chimney venting.
Key features:
Function:
Vents combustion gases: Safely and efficiently removes hazardous gases from gas and oil-fired equipment (furnaces, boilers, water heaters, unit heaters) through an exterior wall, eliminating the need for traditional chimneys.
Positive pressure venting: Creates controlled airflow to ensure complete and safe removal of harmful gases, even in windy or turbulent conditions.
Technical Specifications:
Sidewall installation: Designed for compact and convenient mounting on an exterior wall, saving space and installation costs.
Versatile compatibility: Works with various gas and oil-fired equipment within specific BTU input ratings (check model compatibility).
Adjustable damper: Enables precise airflow control for optimal combustion efficiency and potentially lower fuel consumption.
Diaphragm fan proving switch: Monitors fan operation and shuts down the equipment if the vent isn't working properly.
UC1 universal control: Interlocks with various burner control circuits for added safety and system integration.
Compact design: Streamlined and unobtrusive for minimal visual impact on the building exterior.
Durable construction: Built with high-quality materials for long-lasting performance and reliability.
Benefits:
Improved safety: reduces the possibility of carbon monoxide poisoning by making sure combustion gasses are vented properly and safely.
Increased efficiency: Optimized airflow can lead to lower fuel consumption and energy savings.
Flexibility: Adapts to various equipment and installation requirements, offering a diverse solution for venting needs.
Cost-effective: More affordable than traditional chimney installation and maintenance in many cases.
Quiet operation: Modern design minimizes noise generation for comfortable indoor and outdoor environments.
Applications:
Residential homes with gas, LP, or oil-fired heating systems.
Light commercial buildings like restaurants, warehouses, and workshops.
New building or remodeling endeavors.
Changing out damaged chimneys.
Remember:
Verify compatibility with your specific equipment and local building codes before purchasing or installing the HS1.
Consult the product manual or Tjernlund website for detailed specifications, installation instructions, and compatible equipment models.
Signs of faulty Tjernlund Products HS1 115v 3000rpm Power Venter:
Reduced or No Draft:
Weak or absent draft from the vent outlet: This suggests the fan might not be functioning properly, potentially leading to incomplete combustion and carbon monoxide buildup.
Sooting or discoloration around the vent: Soot accumulation or blackening near the outlet can indicate incomplete combustion due to insufficient airflow.
Operational Issues:
Unusual noises: Loud whining, grinding, or rattling sounds coming from the fan unit might indicate wear and tear or internal component failure.
Frequent cycling: The fan turning on and off frequently could suggest malfunctioning components or issues with the control system.
Burning odor: A faint burning smell emanating from the unit can indicate electrical problems or overheating within the fan motor.
Safety Concerns:
Carbon monoxide alarms ringing: This is a clear indication of potential carbon monoxide leaks due to faulty venting. Evacuate the area immediately and contact qualified personnel to investigate and fix the issue.
Visible smoke or flames near the vent: This is a serious emergency. Immediately shut down the equipment and call emergency services for assistance.
Additional Signs:
Excessive condensation around the vent pipe: This could indicate insufficient airflow or improper installation, potentially leading to moisture damage.
Rust or corrosion on the fan housing or components: Rust can lead to electrical issues and component failure.
Remember:
If you suspect any of these signs, stop using the equipment immediately and shut off the gas or oil supply.
Avoid attempting to fix the fan on your own. Contact a qualified HVAC technician or gas appliance specialist for diagnosis and repair.
Frequent upkeep and inspections can aid in the early detection of any problems and the avoidance of more serious ones.
