The Fireye ED510 LCD Display Module with Keypad provides clear system information and control to ensure effective management of the system. It is used to improve the safety and efficiency of the HVAC systems. This module is designed for EP and EPD programmers and offers the possibility to track the current status and error codes. It works by interacting with the burner control system, and the users can control and adjust the functions of the system. It is widely used in commercial HVAC equipment such as boilers and burners and helps in simplifying the system. Some of the advantages include increased accuracy, quicker diagnosis, and increased safety by using keypad control of the system.

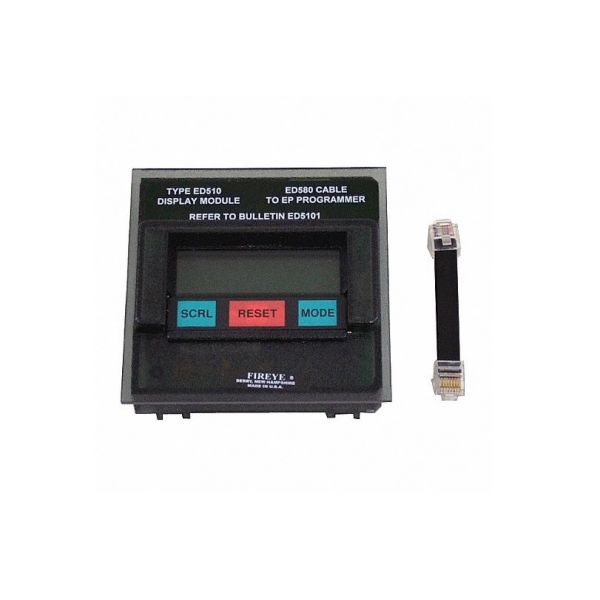

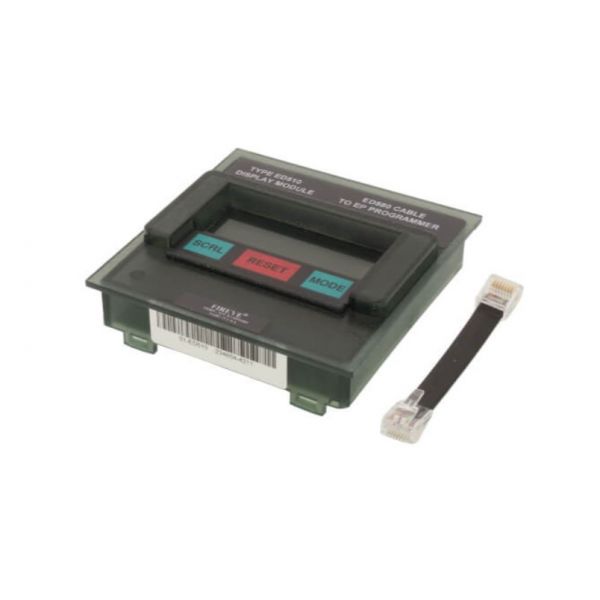

The Fireye ED510 serves as a display module designed to offer visual feedback regarding the functioning of a Fireye flame monitor or MicroM burner management control. Equipped with a backlit LCD display featuring two lines and 16 characters, as well as three tactile dome keypad buttons, the ED510 presents crucial information to users. This ED510 Fireye LCD display module includes details on the current burner status, encompassing ignition state, flame status, and any existing lockout conditions. Additionally, it provides first-out annunciation to identify the initial burner that failed to ignite or sustain a flame. The display also offers historical burner information, showcasing the last six lockout conditions, diagnostic messages, and other pertinent historical data. Compatible with Fireye flame monitors and MicroM burner management controls, the ED510 ensures easy installation and user-friendly operation. Its provision of valuable information aids in troubleshooting issues, ultimately contributing to the safe and dependable operation of combustion systems.
Key features:
Two-line, 16-character backlit LCD display: Provides clear and concise information about the current status of the burner, including flame presence, lockout conditions, and historical data.
First out annunciation: Immediately alerts the operator to a lockout condition, even if the display is not in the main menu.
Three-key, tactile dome keypad: Allows the operator to navigate through the display menus and enter data.
Compatibility with Fireye flame monitors and MicroM burner management controls: Provides a convenient and easy-to-use interface for these systems.
Signs of Faulty Fireye ED510 display module
Here are some indications that a Fireye ED510 display module might be experiencing issues:
Visual Signs:
Dark Display: The screen remains completely blank, offering no visible output.
Faint Display: The screen lights up, but the brightness is excessively low, making it difficult to read.
Informational Discrepancies:
Inaccurate Data: The information displayed doesn't align with the actual burner status, such as showing a flame presence when there isn't one.
Missing Information: Essential data that should be displayed is absent.
Operational Irregularities:
Intermittent Function: The display works sporadically, sometimes functioning and sometimes not.
Visual Disturbances: The display flickers, freezes, or experiences other visual disruptions.
Keypad Issues: The keypad doesn't respond to key presses or behaves erratically.
Alert Messages:
Error Messages: The display presents specific error messages, such as "No Flame Signal" or "Communication Error."
Burner Malfunctions:
Frequent Lockouts: The burner unexpectedly goes into lockout mode more often than usual, even without obvious flame or burner problems.
