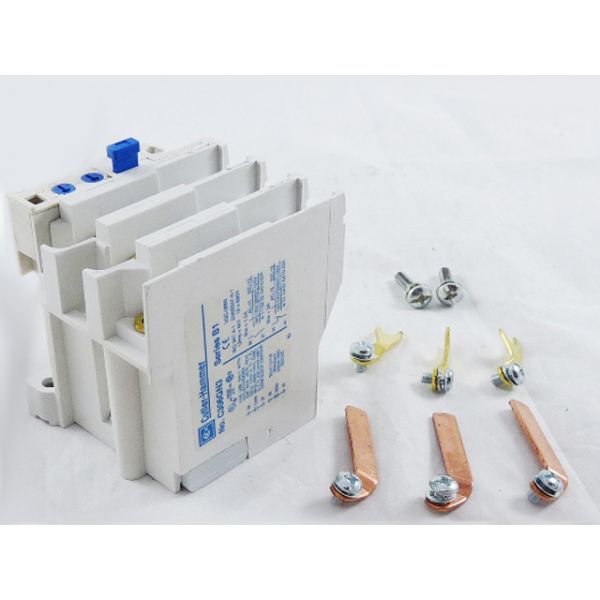

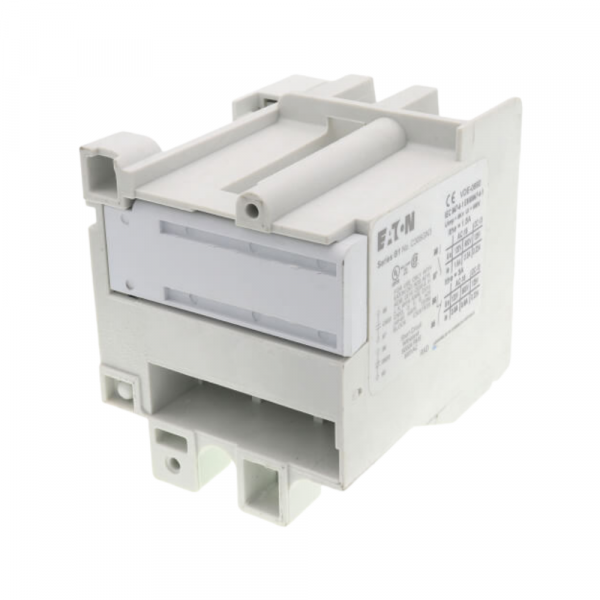

The Cutler Hammer-Eaton C306GN3B Overload Relay functions as 75A protection product which protect HVAC systems motors and electrical systems by monitoring excessive current and overheating. This product detect overload situations by interrupting the power supply to protect motors from damage and system failures. This provide enhanced equipment protection and longer motor life and reduced system downtime through its thermal safety functions. This part ensures both reliability and durability to protect HVAC system functionality throughout its operations at reduced maintenance expense. Particularly made for industrial and commercial HVAC systems this delivers smooth motor operation and enhanced energy efficiency together with dependable motor protection which works as an essential system component to prevent failure.
A 3-phase thermal overload relay, the Cutler Hammer-Eaton C306GN3B, is utilized with a range of motor starters, such as the Freedom NEMA series. A 3-pole, 75 Amp thermal overload relay, the Cutler-Hammer - Eaton C306GN3B is intended to guard motors against overheating in a range of industrial and commercial applications. For NEMA size 1 and 2 contactors as well as IEC frame size G-K contactors, this sturdy and adaptable relay provides dependable overload protection. A 3-pole thermal overload relay called the Cutler-Hammer - Eaton C306GN3B is used in motor control circuits to safeguard Freedom Series contactors. It offers vital overload safety for motors, shielding them from harm and guaranteeing dependable, safe performance. A 3-pole thermal overload relay called the Cutler-Hammer - Eaton C306GN3B is intended to safeguard IEC frame G-K contactors and NEMA sizes 1 and 2 from motor overloads.
Key features:
Motor Protection:
Prevents overheating and damage: Monitors current flow and trips to cut power if it exceeds safe limits, safeguarding the motor from burnout, winding failures, and fire hazards.
Adjustable trip current: Adapts to various motor sizes and operating conditions by allowing you to set the trip point within a specific range based on the motor's amperage rating.
Bi-metallic trip mechanism: Provides reliable and responsive protection, reacting to both current and temperature changes for accurate detection of overload situations.
Flexibility and Ease of Use:
NEMA size 1 and 2 compatibility: Works with a wide range of motor starters designed for these frame sizes.
75 Amp current rating: Suitable for motors with a continuous current draw within this range.
Manual reset button: Simplifies operation by allowing you to easily reset the relay after it trips, without requiring complex procedures.
DIN rail or panel mounting: Offers convenient installation options based on your space constraints and preferences.
Safety and Quality:
CSA Certified and UL Listed: Ensures compliance with stringent safety and quality standards, providing peace of mind for reliable performance.
Works in conjunction with motor starters: Requires use with a compatible starter that provides the switching mechanism for motor control.
Expert installation recommended: Replacing a faulty overload relay should be done by a qualified electrician for safety and proper functionality.
Benefits:
Protects motors from overloads: Enhances motor lifespan and reduces downtime due to motor failures.
Improves system safety: Helps prevent electrical hazards and equipment damage.
Flexible installation: Adapts to various contactor types and mounting requirements.
Easy to adjust: Allows for precise overload protection settings.
Reliable performance: Ensures consistent and dependable motor protection.
Applications:
Industrial machinery
HVAC systems
Pumps
Conveyors
Fans
And other motor-driven equipment requiring overload protection
Additional Information:
Refer to the manufacturer's datasheet for detailed specifications, wiring diagrams, and installation instructions.
To guarantee appropriate selection and installation for your particular application, think about speaking with a licensed electrician.
This relay is intended for use with compatible contactors and should not be directly wired to motors.
Signs of faulty Overload relay C306GN3B Cutler Hammer-Eaton:
Motor Issues:
Motor frequently tripping off: This is the most common sign and suggests the relay is tripping prematurely, even under normal operating conditions.
Motor not starting at all: A faulty relay might prevent the starter from energizing the motor, leading to a complete no-start situation.
Motor overheating: Despite tripping, the relay might not be functioning correctly, allowing the motor to overheat and potentially suffer damage.
Unusual motor noise or vibration: Increased noise or vibration could indicate internal issues within the relay or the starter, impacting motor operation.
Relay-Specific Indicators:
Physical damage: Look for cracks, burns, or other signs of physical damage on the relay housing.
Overheated relay: Feel the relay for abnormal heat, which could indicate internal malfunction.
Stuck contacts: Relay contacts may become trapped in the open or closed state, which would hinder their ability to function properly.
Buzzing or humming noise: Unusual sounds coming from the relay might indicate internal component issues.
Additional Considerations:
Verify proper wiring: Loose or incorrect wiring connections can cause intermittent issues or complete failure.
Check for overload: Ensure the motor isn't drawing excessive current due to external factors like blocked fans or increased load.
Consult the user manual: Refer to the handbook for specific troubleshooting procedures and problem codes related to the Overload relay C306GN3B.
