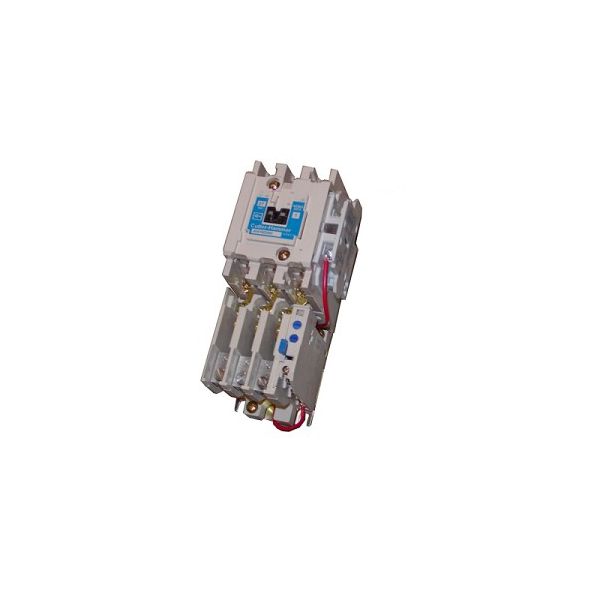

The Cutler-Hammer Eaton AN16DN0AB is a workhorse 3-pole, full-voltage motor starter designed for controlling powerful 3-phase motors in residential and light commercial HVAC systems. Operating on standard household current (120 volts AC) at 60Hz, it acts as a safety switch and control point for your motor. While lightweight at 3.45 lbs, it packs a big punch in terms of functionality. The motor starter is a guard and manager for your HVAC system's motor. It consists of two key parts: a magnetic contactor and an overload relay. The contactor is essentially a heavy-duty relay that uses an electromagnet to control the flow of electricity to the motor. When you turn on the HVAC system and the control circuit sends a signal, the contactor electromagnet energizes, closing its contacts and allowing power to flow to the motor. The overload relay acts as a safety mechanism. It monitors the current flowing to the motor and can trip the contactor if it detects an overload or overheating situation. This helps prevent motor damage and potential fires. This Cutler-Hammer Eaton starter is within air handling units or dedicated control panels for 3-phase motors commonly found in HVAC equipment like large-capacity condenser fan motors or commercial chiller pumps. By providing a safe and convenient way to control and protect the motor, the AN16DN0AB starter ensures reliable operation and extends the lifespan of your valuable HVAC components.

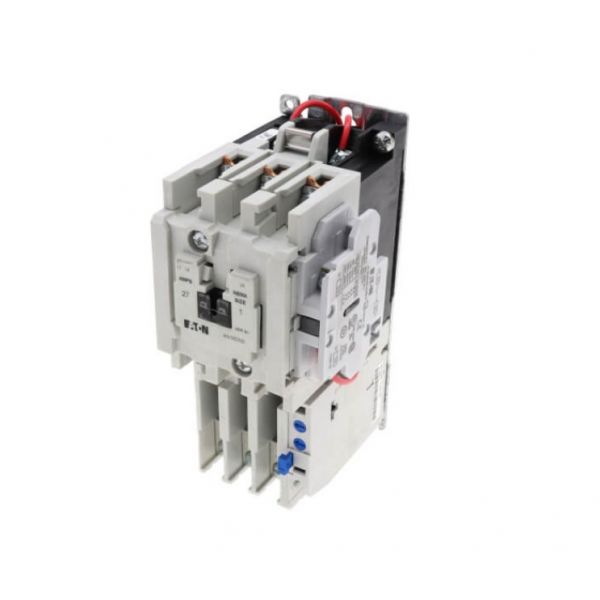

Eaton's Cutler-Hammer brand is a 3-phase full voltage non-reversing magnetic starter, model number AN16DN0AB. As part of their Freedom NEMA motor control starting line, it is intended for use in a variety of industrial applications to regulate and safeguard electric motors. Cutler-Hammer Eaton - AN16DN0AB is a three-phase, full-voltage magnetic motor starter intended for commercial and industrial settings where dependable protection and strong motor control are essential. With an overload relay and NEMA 1 enclosure, it provides a small and adaptable solution for a range of motor starting requirements. A heavy-duty, three-phase, full-voltage magnetic motor starter, the Cutler-Hammer Eaton AN16DN0AB is intended for industrial and commercial applications needing dependable motor control and protection. It is designed to survive harsh conditions and provide outstanding performance for motors up to 10 horsepower.
Key features:
Control and Protection:
3-phase full voltage non-reversing: Designed to directly connect and control 3-phase motors without requiring additional transformers or reactors.
NEMA size 0 starter: For applications requiring little space and smaller motors, this lightweight and compact design is perfect.
C306 bi-metallic overload relay: Provides thermal protection for the motor against overloads and overheating.
One normally open (NO) auxiliary contact: Allows signaling of motor status (running/stopped) to external control circuits.
Performance and Versatility:
Horsepower rating: Up to 10 HP depending on voltage, making it suitable for a range of motor sizes.
Amperage rating: 27 Amps, ensuring compatibility with common motor currents.
Single and triple phase compatibility: Adapts to different motor configurations without additional components.
Standard NEMA construction: guarantees adherence to industry norms for interchangeability, performance, and safety.
Benefits:
Reliable motor starting and protection: Ensures smooth operation and safeguards your motor from potential damage.
Versatility: Suitable for various applications with its reversible function and NEMA 1 enclosure.
Space-saving design: Compact design makes effective use of available space in control panels.
Easy installation and maintenance: Simplifies setup and ensures long-lasting performance.
Applications:
Industrial machinery
Pumps and fans
Conveyors
HVAC equipment
Woodworking and metalworking machines
And many more industrial and commercial applications
Additional Features:
Open type enclosure: Provides easy access for wiring, inspection, and maintenance.
CSA Certified and UL Listed: Meets stringent safety and quality requirements.
Horizontal mounting: Simple and convenient installation on walls or panels.
Heater packs (optional): Can be added for cold weather applications to prevent condensation and ensure reliable operation.
Sings of faulty Motor Starter AN16DN0AB Cutler Hammer-Eaton:
General:
Motor not starting: This is the most obvious sign and could be caused by a faulty contactor coil, overload relay trip, wiring issues, or even problems with the motor itself.
Humming or buzzing noises: These sounds might indicate a struggling contactor coil or overload relay.
Burning smell: This is a serious indicator and could signify overheating or electrical arcing. Immediately shut down the power and inspect the starter for damage.
Visible damage: Look for physical damage to the starter housing, wiring, or internal components.
Tripped circuit breaker: If the starter is wired to a circuit breaker, it may trip if the starter malfunctioning causes excessive current draw.
Specific to AN16DN0AB:
Overload relay trips frequently: This suggests the motor might be drawing excessive current due to overload or internal fault. Reduce load or check motor health.
Auxiliary contact failure: The NO auxiliary contact might not activate or deactivate properly, impacting any connected control circuits.
Heater pack malfunction (if used): If your starter operates in cold weather and uses heater packs, their failure could lead to condensation and starter malfunction.
Starter Malfunctions:
Burning odor or smoke: This is a serious sign of electrical malfunction within the starter and requires immediate attention. Shut down the power and avoid operating the motor or starter until a qualified electrician diagnoses the issue.
Visible damage: Burns, corrosion, cracks, or physical damage to the starter casing, contactor, or other components can indicate internal faults or exposure to excessive heat, moisture, or impact.
Unusual noises: Buzzing, humming, or clicking sounds not typical during normal operation can point to issues with contactor coils, thermal overload relay, or other internal components.
Fuse blown: A blown fuse within the starter's disconnect indicates an overcurrent situation that the starter should have protected against. This can be the result of a short circuit somewhere in the motor circuit or even within the starter.
Additional Considerations:
Age of the starter: Like any electrical equipment, magnetic motor starters have a lifespan, typically around 10-15 years. Consider proactive replacement of an older unit, especially if you notice reduced performance or minor issues.
Environmental factors: Exposure to excessive heat, dust, moisture, vibration, or corrosive elements can accelerate wear and tear on the starter and overload relay. Ensure proper environmental controls or choose a starter with a suitable enclosure rating for your application.
Regular maintenance: Following the manufacturer's recommendations for inspection and maintenance can help identify minor issues before they become significant problems. This could entail making sure the overload relay is operating properly and looking for worn-out parts and loose connections.
Remember: Never try to fix the Motor Starter AN16DN0AB yourself if you see any of these symptoms. To identify the issue and make sure that your staff and equipment are safe, get in touch with a certified electrician. Depending on the extent of the problem and its probable source, they can offer advice on replacement or repair.
Additional Tips:
Refer to the AN16DN0AB user manual: The manual provides troubleshooting information and specific error codes that can help diagnose the problem.
Consult a qualified electrician: If you're not comfortable troubleshooting electrical equipment yourself, it's best to call a qualified electrician for diagnosis and repair. Never forget that being safe is crucial when working with electricity.
