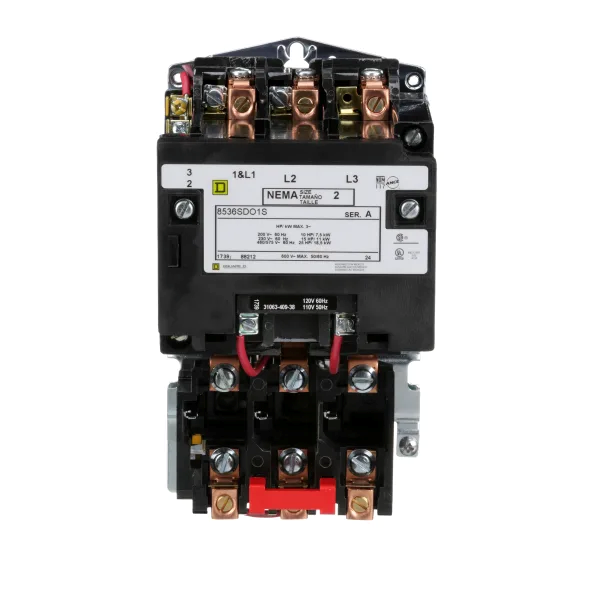

Schneider Electric (Square D) 8536SDO1V02S 120V Size 2 Motor Starter
The Schneider Electric 8536SDO1V02S is a size 2, 120V, non-reversing magnet motor starter meant for full-voltage start-up and shutdown of an AC squirrel-caged motor. It can run motors up to 25 horsepower at 460 volts with a 45 amp rating. For the starter to function, it must first receive a 110/120 volt AC control signal. This signal causes a coil to open and close contacts magnetically, allowing current to reach the motor. To safeguard the motor from harm, it makes use of a melting alloy overload relay with replaceable thermal units that automatically stop power in the event of excessive current demand. The 8536SDO1V02S is a motor that can be utilized in a variety of industrial and commercial applications, including exhaust fans, pumps, and compressors, even though it was not made expressly for HVAC equipment.
