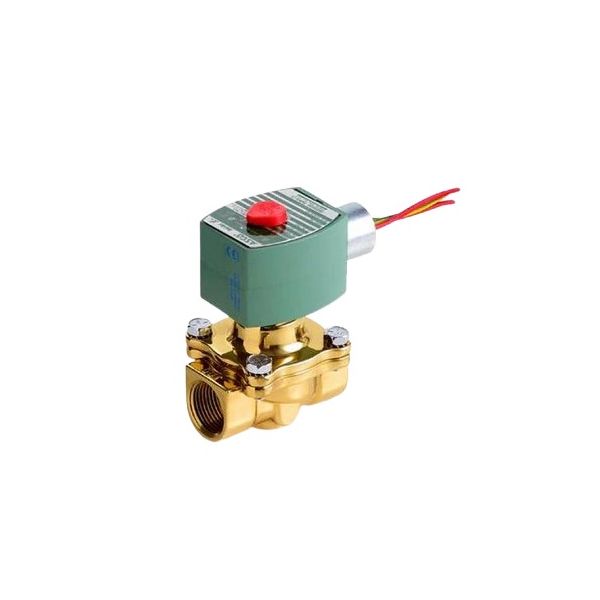

The ASCO 8210G4-24V 1” N/C Solenoid Valve is a normally closed valve that is used to regulate air and water pressure at 5-150 PSI. Powered by a 24V power supply, 60Hz, it uses an electromagnetic coil to lift a plunger for fluid flow when energized. This valve is applied to HVAC systems, fluid control systems and pneumatic systems to protect the systems from flowing during power failure. They include the simplification of fluid control, elimination of leaks and improvement of operation safety making it essential for efficient system operation in several industrial applications.
1 Inch N/C 24V/60Hz 5/150 Air/Water Asco 8210G4-24V
The ASCO 8210G4-24V is a 24-volt version of the ASCO 8210G4, a general service solenoid valve designed for controlling the flow of liquids and gases in industrial and commercial applications. It shares many of the same features and applications as its 120V and 240V counterparts, but with a specific voltage requirement for optimal operation.
Key Features:
General:
2-way Normally Closed: Allows flow only when energized, automatically shutting off when de-energized.
1-inch NPT port size: Suitable for handling moderate flow rates.
200 psi maximum pressure: Can withstand high pressures for various industrial applications.
Brass body: Durable and corrosion-resistant construction for long-lasting performance.
Red Hat design: Easy visual identification and differentiation from other ASCO valve models.
Compact size: Fits easily into tight spaces.
Direct replacement: Compatible with existing piping and installation setups.
Specific to 24V:
24V AC/DC voltage: Requires a 24-volt power supply for proper operation.
Lower power consumption: Compared to higher voltage options, potentially contributing to energy savings.
Applications:
Suitable for all applications where the 8210G4 is used, but with the specific requirement for a 24-volt power supply. This could include:
Industrial automation systems with 24V control circuits.
Battery-powered systems or applications in remote locations with limited access to higher voltages.
HVAC systems or other equipment already using 24V power for other components.
Benefits of 24V:
Lower safety risks: 24V is considered a safer voltage for electrical work, reducing risk of shock or electrical hazards.
Potential for energy savings: Lower power consumption compared to higher voltages.
Compatibility with existing systems: Ideal for applications already using 24V power infrastructure.
Important Notes:
Always confirm compatibility with your specific application and voltage requirements before purchasing.
An experienced expert with knowledge of both electrical and plumbing systems should carry out the installation.
For thorough instructions on installation, use, and maintenance, specifically for the 24V version, consult the manufacturer's instructions.
Overall, the ASCO 8210G4-24V is a reliable and versatile 24-volt solenoid valve suitable for various fluid control applications where lower voltage is preferred or required. It is a worthwhile option for commercial and industrial applications due to its performance, robustness, and compatibility.
Signs of a Faulty Asco 8210G4-24V 1 Inch N/C 24V/60Hz 5/150 Air/Water:
Operational Issues:
Leaking: Fluid or gas leaking from the valve, even when closed, suggests internal issues with the seal or valve mechanism.
No flow or reduced flow: The valve is not allowing sufficient flow through, potentially due to a stuck valve, clogged ports, or malfunctioning solenoid.
Hammering or banging noises: Unusual noises from the valve, like hammering or banging, can indicate internal damage or loose components.
Erratic operation: The valve opens and closes intermittently or uncontrollably, causing inconsistent flow in the system.
Failure to shut off: The valve remains open even when de-energized, posing safety hazards and causing unnecessary fluid or gas flow.
Performance Issues:
Increased energy consumption: Higher electricity bills than usual might be caused by inefficient operation of the valve solenoid.
Frequent cycling: The valve opens and closes more frequently than necessary, potentially due to malfunctioning components or control system issues.
Reduced system efficiency: The overall system performance is compromised due to issues with the valve's flow control.
Electrical Issues:
Dimming or flickering lights: If the valve is connected to the same circuit as lights, flickering or dimming could indicate voltage or power supply issues affecting the solenoid.
Burning smell: Any unusual electrical burning smell near the valve or wiring suggests potential internal electrical faults.
Physical Signs:
Visible damage: Look for cracks, dents, or any physical damage to the valve body, solenoid housing, or electrical connections.
Corrosion: Signs of corrosion on the valve body or internal components could indicate wear and tear or incompatibility with the fluids being handled.
Overheating: The valve feels hot to the touch, potentially indicating internal electrical problems or overloading.
Remember:
Do not attempt to diagnose or repair the 8210G4-24V 1 Inch N/C 24V/60Hz 5/150 Air/Water Asco yourself, especially if dealing with high pressures or hazardous fluids. Consult a qualified technician familiar with plumbing, piping systems, and electrical work.
Shut down the system and power supply immediately if you hear loud noises, smell burning, or experience significant leaks.
Refer to the manufacturer's instructions or technical documentation for troubleshooting steps and information specific to your application and valve model.
