Field Controls 602609900 Main Circuit Board Replacement Kit CK - 63

Special Price $148.76 Regular Price $171.08
In stock
SKU
602609900
The Field Controls 602609900 Circuit-Board Replacement Kit CK-63 is a high quality replacement circuit board for HVAC system. To provide maximum performance and reliability, it is designed to repair the heating and cooling unit’s circuit boards when they malfunction or need replacing from damaged boards. It works with different HVAC equipment and provides an easy and quick solution for repairs. The replacement board restores proper function, increases energy efficiency and extends the system's life. Using this kit will help the HVAC system avoid major repair and downtime bills, and will keep the HVAC system running smoothly and at a comfortable temperature inside.

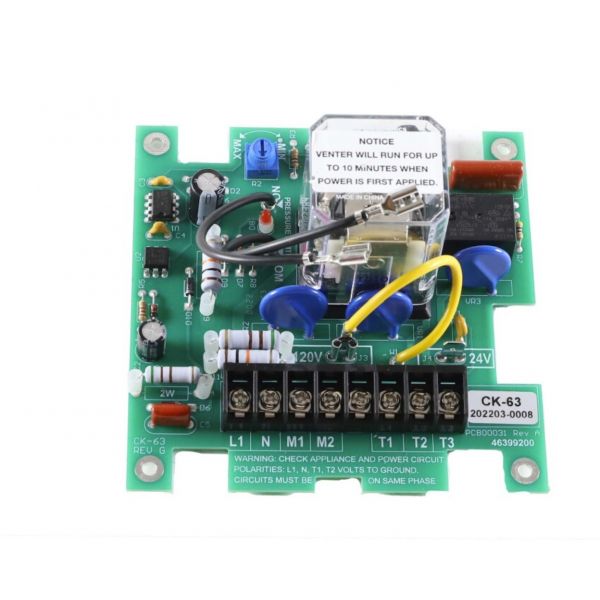

https://www.partshnc.com/media/catalog/product/6/0/602609900_FieldControls_partshnc.jpg

Specifications

  • Type: Circuit Board Replacement Kit
  • Compatible Model: CK-63
Manufacturer Name: Field Controls
Product Number: 602609900
OEM Part Number: 602609900
Product Description: Ck-63 Circuit Board Kit
Weight:0.71lbs/322.05g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Write Your Own Review
You're reviewing:Field Controls 602609900 Main Circuit Board Replacement Kit CK - 63
Your Rating
Customer Questions
What maintenance is required for the Field Controls 602609900 Main Circuit Board Replacement Kit?

Regularly inspect the circuit board for dust, debris, or corrosion. Ensure all connections are secure and clean. Avoid moisture contact and handle the board carefully. Proper maintenance assist to prevent signal failures and ensures accurate system operation.

What are common issues with the Field Controls 602609900 Main Circuit Board Replacement Kit?

  • Board failing to power on or respond.
  • Intermittent or erratic signals.
  • Loose or corroded wiring connections.
  • Burnt or damaged components.

What is the primary function of the Field Controls 602609900 Main Circuit Board Replacement Kit?

The 602609900 manages electronic control operations within the CK-63 combustion control system. It coordinates signals between connected control and safety components to support the system's intended operation.

How does the main circuit board support burner and venting coordination?

The board manages control signals associated with burner and venting operations, helping coordinate the system's electronic responses throughout its operating sequence.

What maintenance does the Field Controls 602609900 require?

Have a qualified technician inspect the circuit board, wiring, terminals, and connected control components during scheduled equipment servicing, following Field Controls instructions.

What details should I compare between the existing CK-63 board and the 602609900 replacement kit?

Compare the board part number, connector arrangement, and wiring configuration to confirm that the replacement kit matches the existing CK-63 control setup.

What should I verify before ordering the 602609900 kit?

Confirm that the equipment uses the CK-63 control kit and check the existing board's part number, connector arrangement, and wiring configuration against the replacement kit and manufacturer documentation.

Installation Steps

Step1: Turn off all power to the unit before beginning.

Step2: Remove the access panel to locate the existing circuit board.

Step3: Disconnect all wiring carefully, noting connections for reference.

Step4: Unscrew and remove the old circuit board.

Step5: Position the new board and secure it with screws.

Step6: Reconnect all wires according to the reference notes.

Step7: Replace the access panel, restore power, and test the system safely.
