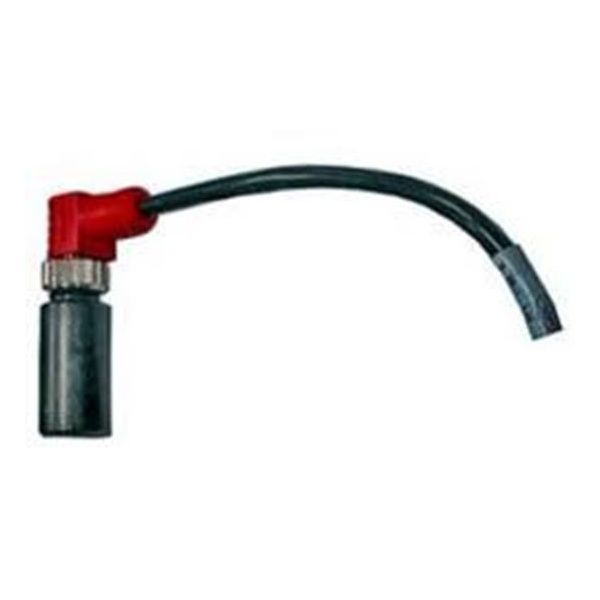

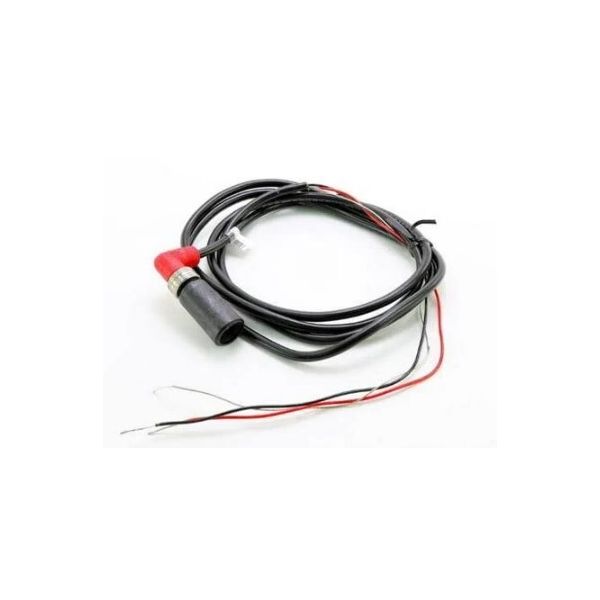

The Fireye 48PT2-9003 Infrared Scanner is a flame detector that is used for industrial HVAC systems and has a lead length of 8 feet and a head mount of 90°, which makes it possible to monitor the presence of flames in combustion systems. It utilizes infrared sensing technology to identify flames based on the emitted infrared radiation ensuring that it works well in high temperature conditions. This scanner is used in burners, boilers, and furnaces and helps in preventing flame failure and increases safety and efficiency by reducing downtime. Some of the advantages include, short response time, and high durability, and ability to accurately distinguish between flames.
The Fireye 48PT2-9003 is a lead-sulfide infrared (IR) flame scanner designed to monitor and safeguard gas and oil flames in various industrial applications. It acts as a vigilant sentinel, continuously monitoring the flame's presence and intensity to ensure the safe and efficient operation of boilers, furnaces, and other combustion equipment. By continuously monitoring the flame presence, the 48PT2-9003 Fireye infrared flame scanner helps prevent accidental extinguishment and fuel leaks, minimizing the risk of explosions and fires. The scanner's accurate flame detection ensures optimal fuel combustion, leading to increased boiler or furnace efficiency and reduced fuel consumption. Reliable performance and minimal maintenance requirements minimize downtime for your equipment. The 48PT2-9003 provides operators with confidence in their burner's safe and efficient operation, allowing them to focus on other tasks.
Key features:
Weight: It weighs 0.91 lbs (412.77 g).
Detects infrared radiation: The 48PT2-9003 uses a lead sulfide detector to sense the infrared radiation emitted by burning gas and oil flames. This allows it to reliably detect the presence or absence of a flame, even in challenging environments with ambient light or dust.
Durable and reliable: Built with robust materials and a NEMA 4 enclosure rating, the scanner withstands harsh industrial environments like extreme temperatures, dust, moisture, and vibrations.
Compatible with various systems: It works seamlessly with Fireye's D-Series, FlameMonitor, FlameWorx, MicroM, and BurnerLogiX control systems, providing integrated flame safety and monitoring solutions.
Adjustable settings: The scanner offers parameters like flame signal strength and timing intervals that can be adjusted to optimize its performance for specific burner configurations and fuel types.
Easy installation and maintenance: The 48PT2-9003 comes with a flexible conduit and mounting options for convenient installation and maintenance.
Potential Issues with Fireye 48PT2-9003 Flame Scanner
The Fireye 48PT2-9003 flame scanner plays a crucial role in ensuring the safe and efficient operation of gas and oil burners. However, like any equipment, it can encounter issues affecting its performance. Here are some signs to watch out for:
Flame Detection Issues:
Frequent burner shutdowns: If the burner shuts down unexpectedly due to "no flame" signals despite a clear flame, it could indicate a faulty IR detector, misalignment, or internal processing issues.
Delayed or erratic flame detection: If the scanner takes longer than usual to detect a flame or displays fluctuating readings, it might be due to detector degradation, misalignment, or electrical problems.
False flame signals: If the scanner detects a flame even when the burner is off, it could be due to internal malfunctions or interference from external sources like hot objects or radiant heaters.
Operational Issues:
Error codes: The Fireye control system might display specific error codes related to the 48PT2-9003's operation. Consult the Fireye documentation for detailed interpretations of these codes.
Unresponsive communication: If the scanner stops communicating with the control system, it could be due to wiring problems, faulty connections, or internal component failures.
Physical damage: Visible cracks, burn marks, or loose connections on the scanner's housing can compromise its functionality and safety.
Safety Concerns:
Gas leaks: If the scanner malfunctions and fails to detect a flame extinguishment, it could lead to gas leaks posing a fire hazard.
Unexpected burner operation: If the scanner provides incorrect flame signals, it could lead to unintended burner ignition or continued operation with low flame quality, potentially causing equipment damage or safety risks.
Similar models:
48PT2-9007, 48PT2-1007, 48PT2-1003
Choose the best HVAC equipment parts and supplies from PartsHnC!
How do I adjust the settings on the infrared scanner?
Consult the user manual for specific instructions on adjusting parameters like flame signal strength and timing intervals. These settings should be customized for your burner configuration and fuel type.
What should I do if I suspect a problem with the infrared scanner?
Immediately shut down the burner and seek assistance from a qualified technician trained in Fireye systems. Do not attempt to diagnose or repair the scanner yourself.
Is the scanner reliable for safety purposes?
The 48PT2-9003 infrared flame scanner is designed with safety features like self-checking, but it's crucial to prioritize safety and shut down the burner if any issues are suspected.
