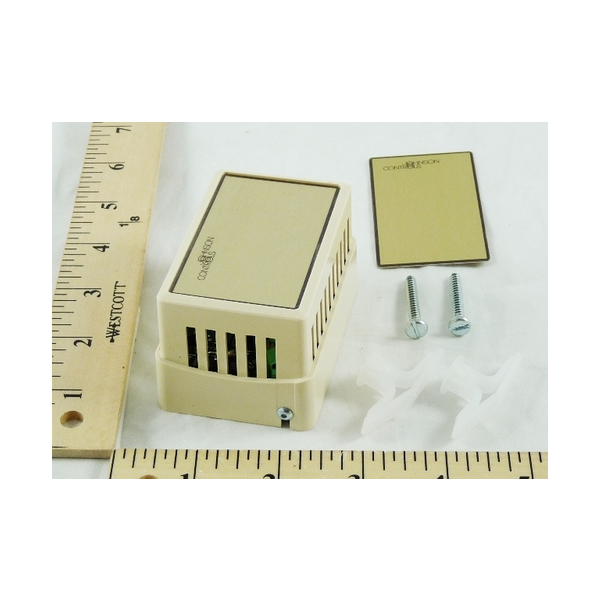

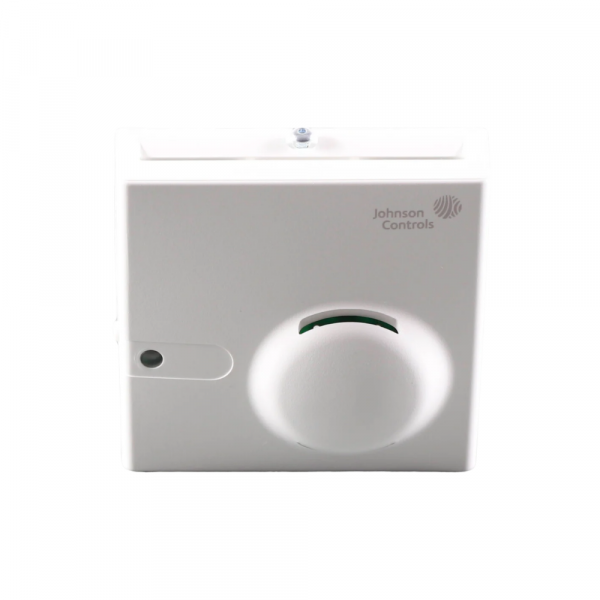

The Johnson Controls HE-68N3-0N00WS Wall-Mounted Humidity and Temperature Sensor is suitable for HVAC systems and has an RH accuracy of ±3%. This component uses capacitive polymer sensing technology to measure relative humidity and temperature for accurate monitoring. This sensor can be easily interfaced with HVAC equipment such as air handling units, dehumidifiers, and humidifiers to enhance indoor air quality and energy consumption. It helps regulate the ideal humidity and temperature to ensure comfort to the occupants, check on the growth of mold, and protect sensitive equipment.
The HE-68N3-0N00WS by Johnson Controls is a sophisticated wall-mounted sensor engineered to monitor humidity and temperature in indoor settings. Specifically designed for precise environmental control, this device delivers accurate readings critical for HVAC systems and various applications. Its wall-mount feature ensures easy installation, optimizing its functionality. This HE-68N3-0N00WS Johnson Control wall mount sensor plays a pivotal role in maintaining optimal conditions within a space, enhancing energy efficiency, and contributing to overall comfort. With a commitment to quality, Johnson Controls has crafted a reliable solution in the HE-68N3-0N00WS, meeting the demands of diverse environments that prioritize effective climate management.
Key features:
Dual sensing: Measures both relative humidity (RH) and temperature within a single device.
Accurate RH sensor: Has a 3% RH accuracy, ensuring reliable humidity readings.
Wide RH range: Measures humidity levels from 10% to 90% RH.
Temperature sensor: Includes a nickel temperature sensor with a range of 0 to 55°C (32 to 131°F).
Wall-mount design: Installs easily on walls in indoor spaces.
Zone bus compatibility: Integrates with other Johnson Controls devices for comprehensive control systems.
Occupancy override button: Allows temporary adjustments to temperature setpoints for user comfort.
DIP switches: Enable customization of sensor features, such as override and LED functions.
Signs of a Faulty Johnson Control Wall Mount Sensor
1. Inaccurate Readings:
Significant Abweichung from actual temperature or humidity: If the sensor's readings are consistently far off from what other thermometers or hygrometers show in the same location, it's likely malfunctioning.
Erratic or fluctuating readings: The readings on the sensor's display shouldn't jump around or fluctuate rapidly. This could indicate a faulty sensor or wiring issue.
2. Display Issues:
Blank or dim display: If the display is completely blank or very dim, even with fresh batteries, it could be due to a faulty display component.
Stuck pixels or lines on the display: If the display shows stuck pixels or lines, it's a sign of internal damage.
3. Physical Damage:
Cracks or dents on the housing: Physical damage can affect the sensor's performance and accuracy.
Loose or corroded wiring connections: Check the wiring connections for any signs of looseness, corrosion, or damage.
4. Functional Issues:
Occupancy override button not working: If pressing the occupancy override button doesn't change the temperature setpoint, it could be faulty.
Sensor not responding to configuration changes: If you're unable to change the sensor's settings through the DIP switches, there might be an internal issue.
