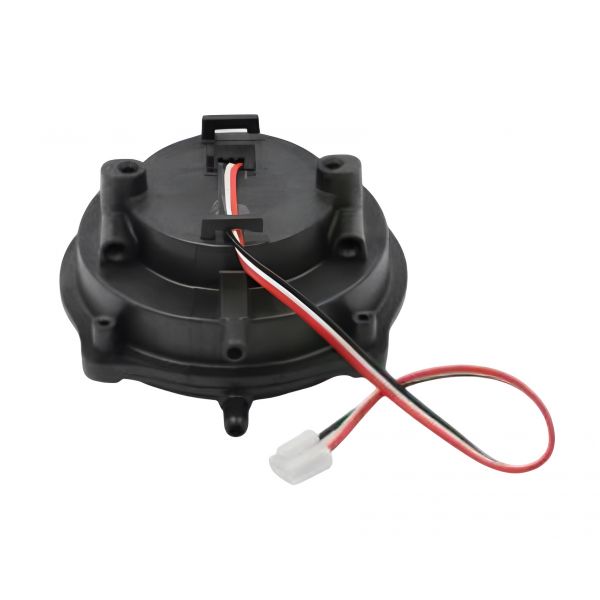

main product photo

Navien Tankless Water Heaters 30010238A Air Pressure Sensor 02-A

Rating:
5 5 3
3  Reviews Add Your Review
Special Price $32.48 Regular Price $42.22
Out of stock
SKU
30010238A
The Navien Tankless Water Heaters 30010238A Air Pressure Sensor ensures High performance in HVAC systems. This premium plastic sensor detects the system’s air pressure to afford the safe and efficient operation of the system. It enhances the equipment's durability and reliability through constant air flow monitoring and elimination of system faults The sensor is small and sturdy easily installable and easily integrated into the current systems. It provides precise measurements that reduce costs of operations and improve the efficiency of energy use as well as creating a comfortable environment.
Add to Wish List
HVAC Controls & Electrical, Control & Sensing Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/3/0/30010238a.jpg

Specifications

  • Weight: 0.24 lbs
  • Type: Air Pressure Sensor
  • Material: High-Quality Plasticl
Monitors air pressure conditions within the connected equipment and converts the detected pneumatic condition into an electrical response for the associated control circuitry in HVAC systems. The NAVIEN 30010238A Air Pressure Sensor APS-02-A operates through its sensing interface, where changes in air pressure create corresponding variations in the sensor output. This signal allows the control system to evaluate pressure conditions associated with equipment operation. It is used in air-handling and combustion-related equipment where pressure information is required for electronic monitoring and control.

Pressure Signal:
Converts the detected pressure condition into an electrical signal for the connected control circuitry. Changes in pressure at the sensing interface produce corresponding variations in the sensor output, allowing the receiving electronics to interpret the pneumatic condition. The signal pathway provides a defined electrical representation of pressure within the equipment’s air-control arrangement and supports electronic evaluation of changing pressure conditions.

Airflow Detection:
Responds to pressure conditions associated with air movement through the connected equipment. Variations created by the movement of air reach the sensing element and produce a corresponding sensor response. This arrangement allows the control system to recognize changes associated with airflow through the designated passage, providing an electrical input that represents the operating air condition within the equipment.

Replacement Guidelines:
Replacement requires matching NAVIEN 30010238A Air Pressure Sensor APS-02-A characteristics, electrical output, sensing connection, physical configuration, and equipment control requirements. The replacement should also suit the existing air-pressure monitoring circuit and operating conditions.

Common Failure Symptoms:

  • Pressure readings become inconsistent during operation.
  • Unit responds incorrectly to airflow conditions.
  • Heating cycle stops during normal operation.
  • Combustion sequence fails to proceed as expected.
  • Pressure-related control response becomes intermittent.

Equipment Compatibility:
The NAVIEN 30010238A Air Pressure Sensor APS-02-A is intended for Integrates with equipment requiring the corresponding air-pressure sensing configuration. Verify the equipment model, sensor arrangement, electrical connection, pressure requirements, and manufacturer’s documentation before purchasing.

Technical Specifications:
Brand: Navien
Part Number: 30010238A
Product Type: Air Pressure Sensor
Model: APS-02-A

Reviews 3
Write Your Own Review
You're reviewing:Navien Tankless Water Heaters 30010238A Air Pressure Sensor 02-A
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Navien 30010238A Air Pressure Sensor?

Regularly inspect the sensor and tubing for dust, debris, or damage. Clean gently with a dry cloth and ensure all connections are secure. Proper maintenance ensures accurate airflow readings and prevents system shutdowns. Always turn off power to the unit before servicing for safety.

What are common issues with the Navien 30010238A Air Pressure Sensor?

  • Incorrect airflow readings or sensor errors.
  • Intermittent burner shutdowns.
  • Loose or damaged electrical connections.
  • Obstructions or leaks in the tubing affecting pressure detection.

What role does the sensor output play in equipment control?

The electrical output provides pressure-related information that allows the control system to evaluate changing air conditions within the monitored circuit.

What part of the sensor establishes pressure measurement?

The interface receives the monitored pneumatic condition and transfers its effect to the internal sensing mechanism for electrical signal generation.

How are airflow conditions represented electrically?

Air movement creates pressure variations at the sensing point, and the sensor converts those variations into an electrical response recognizable by the control system.

How does an air pressure sensor translate pneumatic changes?

The sensing element responds to pressure variations at its interface and produces a corresponding electrical output for the connected control circuitry.

How can I confirm the 30010238A air pressure sensor before purchasing?

Match the 30010238A designation and air pressure sensor identification with the existing component and applicable air-monitoring circuit information.

Installation Steps

Step1: Turn off power and gas supply to the tankless unit.

Step2: Open the access panel to locate the existing air pressure sensor.

Step3: Label and disconnect the wiring harness and tubing from the old sensor.

Step4: Remove the old sensor and mount the new Air Pressure Sensor in place.

Step5: Reconnect tubing and wiring per labels or diagram.

Step6: Replace the panel, restore power and gas, and test operation safely.
