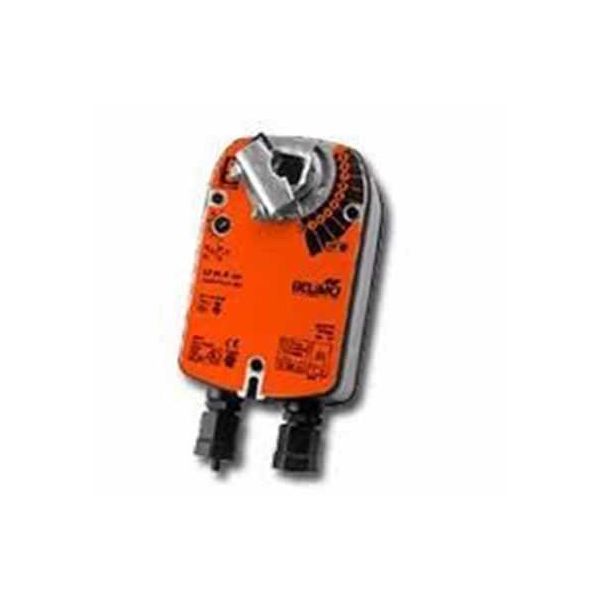

The Belimo AFB24-MFT-X1 Spring Return Actuator operates as 24V control component which specifically controls HVAC systems dampers to precisely regulate airflow in ventilation and air handling systems. The actuator includes a spring return system which activates automatically to restore its default position when power supply fails. The actuator improve both system efficiency and indoor air quality while lowering energy use. This operates perfectly in commercial and industrial HVAC systems to deliver dependable damper control.

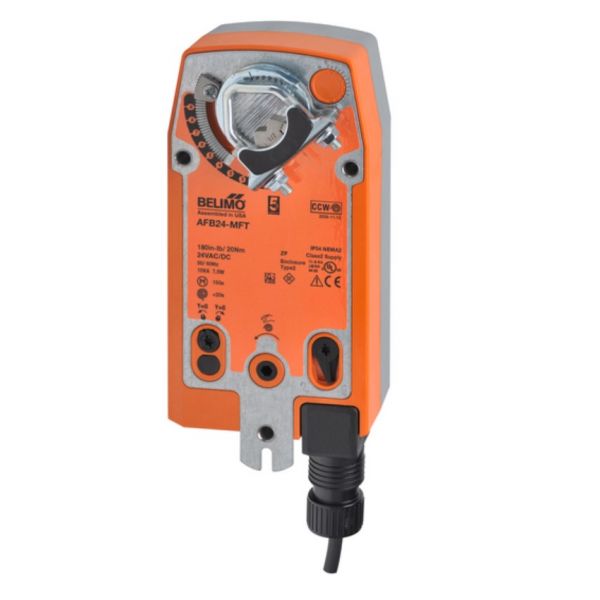

The Belimo AFB24-MFT 24V actuator, with proportional control (Prop), spring return (S/R), and a minimum pressure rating of 180 pounds, is a sophisticated component designed for precise control in HVAC systems. This actuator runs on a 24-volt power supply and uses a 2-10Vdc control signal, allowing for easy integration into a variety of heating, ventilation, and air conditioning (HVAC) systems. Its proportional control capability allows the actuator to change position in proportion to the input signal, providing precise and responsive control over airflow or fluid flow rates. The spring return mechanism ensures fail-safe operation by immediately returning the actuator to a predetermined position in the event of a power outage or system failure, thereby increasing system reliability. The minimum pressure rating of 180 pounds ensures durability and performance in high-pressure applications, making it ideal for use in dampers, valves, and other HVAC equipment that requires accurate control.
Key Features for Belimo AFB24-MFT 24V Prop,S/R,180#Min,2-10Vdc
Proportional Control (Prop): Equipped with proportional control capabilities, the actuator modulates its position in proportion to the input signal (2-10Vdc), allowing for precise and responsive control over airflow or fluid flow rates.
Spring Return (S/R) Mechanism: Featuring a spring return mechanism, the actuator automatically returns to a predefined position in the event of a power outage or system failure, ensuring fail-safe operation and compliance with safety regulations.
High Pressure Rating: With a minimum pressure rating of 180 pounds, the actuator is built to withstand high-pressure environments commonly found in HVAC systems, ensuring durability and reliable performance in demanding applications.
Versatile Compatibility: Operating on a 24-volt power supply and compatible with a 2-10Vdc control signal, the actuator seamlessly integrates into various HVAC equipment such as air handling units, fan coil units, and control dampers, offering versatility in system design and implementation.
Signs of a Faulty Belimo AFB24-MFT 24V Prop,S/R,180#Min,2-10Vdc:
Inconsistent Operation: If the actuator fails to respond consistently to control signals or exhibits erratic movement, it may indicate internal issues affecting its functionality.
Limited Range of Motion: Difficulty in achieving the full range of motion or the actuator's inability to reach the desired position may suggest mechanical obstructions, binding, or internal damage.
Unusual Noises: Grinding, clicking, or buzzing noises during operation could signal mechanical problems within the actuator, such as worn-out gears or damaged components.
Failure to Hold Position: If the actuator is unable to maintain its position once set, particularly in spring return applications, it may indicate issues with the spring mechanism or control circuitry.
System Error Messages: Modern HVAC systems often feature diagnostic capabilities that display error messages when components malfunction. Monitoring system error codes can help identify issues related to the actuator.
