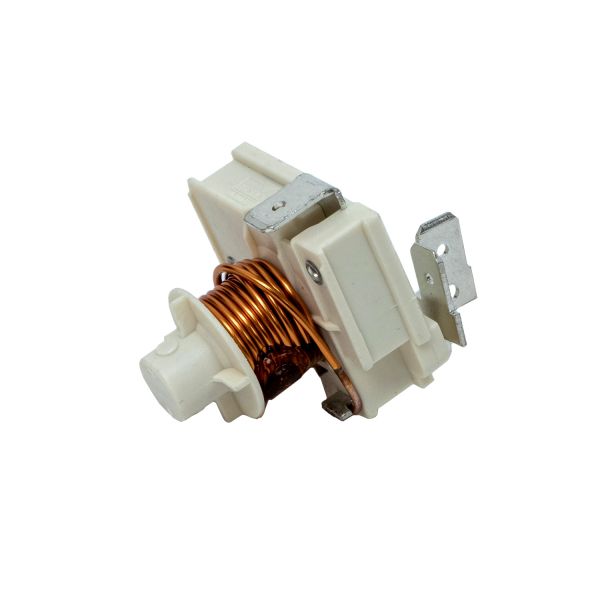

Nidec-Embraco 2271161-ESP Start Relay

Rating:
5 5 6
6  Reviews Add Your Review
Special Price $44.04 Regular Price $57.26
In stock
SKU
2271161-ESP
The Nidec-Embraco 2271161-ESP Start Relay is a safety component that was intended to guarantee the functionality of HVAC which includes both refrigeration and air conditioning. This start relay helps to minimize contact wear on electrical parts and maintains a better flow of voltage for the starting of the compressors. This has a voltage of 110-127V it is made of premium plastic for long-lasting durability. It enhances the system's reliability since it reduces the chance of electrical failure and overheating. This improves the efficiency of HVAC equipment by reducing energy consumption and increasing comfort, ensuring that the compressor starts smoothly.
Add to Wish List
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/2/2271161-esp_nidec-embraco_partshnc.jpg

Specifications

  • Weight: 0.16 lbs
  • Voltage: 110-127V
  • Type: Start Relay
  • Material: High-Quality Plastic
Controls the electrical starting connection of a Integrates with compressor motor by coordinating the circuit path required during the starting condition in HVAC systems. The Nidec-Embraco 2271161-ESP Start Relay operates as an electrically controlled switching component within the compressor-start circuit, establishing the appropriate connection between designated terminals as the motor begins operation. Where a dedicated start-relay arrangement is required to support the compressor motor’s starting sequence.

Electrical Contacts:
Within the relay mechanism, the contact elements provide the conductive surfaces that establish the required electrical connection during the applicable starting condition. Their arrangement determines the physical points at which circuit continuity is created between internal conductive paths. Contact construction concerns the relationship between the contact surfaces, their positioning, and their ability to maintain an electrical connection within the relay assembly. This section focuses exclusively on contact structure and continuity.

Electrical Interface:
At the terminal assembly, the component establishes defined connection points for integration with the surrounding electrical circuit. The terminal layout provides the physical interface through which external conductors connect to the relay, maintaining an organized relationship between the component and adjacent wiring. This section addresses terminal positioning, conductor connection, and circuit integration at the external interface, without describing the internal contact arrangement or its switching function.

Replacement Guidelines:
Replacement requires matching Nidec-Embraco 2271161-ESP Start Relay electrical characteristics, terminal configuration, compressor requirements, equipment specifications, and starting-circuit arrangement. The 2271161-ESP replacement should also suit the existing compressor motor and associated electrical components.

Common Failure Symptoms:

  • Compressor hum without normal startup.
  • Repeated compressor start attempts.
  • Excessive relay operating noise.
  • Incomplete motor-start circuit engagement.
  • Abnormal relay contact resistance.
  • Excessive electrical arcing at contacts.
  • Heat buildup around the relay assembly.
  • Unusual compressor starting current.

Equipment Compatibility:
The Nidec-Embraco 2271161-ESP Start Relay is intended for Integrates with HVAC systems requiring the corresponding compressor-start relay configuration. Verify the equipment model, compressor specifications, relay characteristics, terminal arrangement, and manufacturer’s documentation before purchasing.

Technical Specifications:
Brand: Nidec-Embraco
Part Number: 2271161-ESP
Product Type: Start Relay

Reviews 6
Write Your Own Review
You're reviewing:Nidec-Embraco 2271161-ESP Start Relay
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Nidec-Embraco 2271161-ESP Start Relay?

Inspect electrical connections regularly to ensure they are secure and free from corrosion or loose wiring. Check for overheating, burnt marks, or unusual compressor cycling to detect early failure. Replace the relay promptly if it shows wear to prevent compressor damage and maintain safe system operation.

What are common issues with the Nidec-Embraco 2271161-ESP Start Relay?

  • Failure to start the compressor.
  • Overheating or burnt components.
  • Intermittent operation causing inconsistent cooling.
  • Loose or corroded terminal connections.

Why are relay terminals important to compressor operation?

Terminals create defined electrical connection points between the relay and compressor circuitry, supporting organized current transfer throughout the starting arrangement.

What happens inside the relay during compressor startup?

The internal switching mechanism changes its conductive path according to the starting condition, allowing the designated electrical circuit to provide the required motor-starting function.

Which electrical characteristic supports reliable relay operation?

Stable contact continuity supports consistent electrical transfer through the starting circuit and helps maintain the intended relationship between the relay and compressor motor.

When is a start relay active in a compressor circuit?

A start relay operates during the compressor startup sequence, establishing the electrical connection required to support the motor as it transitions into normal running operation.

How can I confirm the 2271161-ESP start relay before purchasing?

Match the 2271161-ESP designation and start relay identification with the existing component and applicable compressor electrical arrangement.

Installation Steps

Step1: Turn off power to the appliance at the breaker and unplug it.

Step2: Access the compressor area by removing the rear panel.

Step3: Locate the old start relay on the compressor and note wiring positions.

Step4: Remove the old relay and install the new one in the same orientation.

Step5: Reconnect wires to matching terminals and secure any clips.

Step6: Replace the access panel, restore power, and test the compressor start function.
