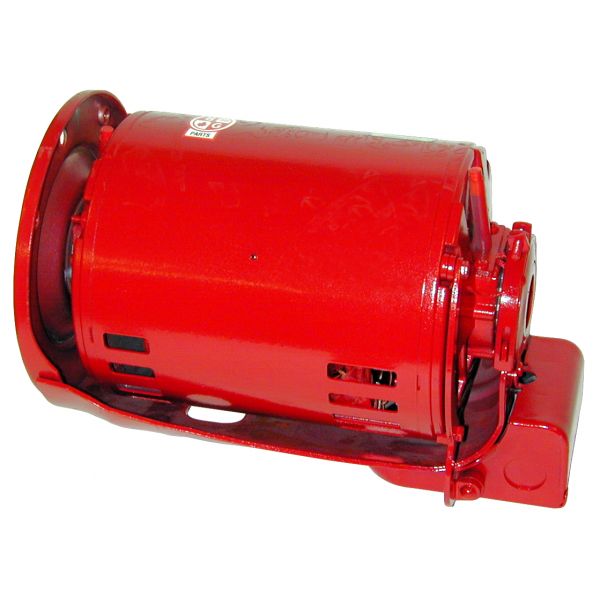

Bell & Gossett 169233 Motor 1Hp 1750 RPM 3-Phase 208-230/460V

Special Price $1,995.84 Regular Price $2,215.38
In stock
SKU
169233

The Bell & Gossett 169233 is a 1 horsepower, 3-phase electric motor designed for commercial and industrial HVAC applications. It functions as the driving force behind centrifugal pumps, a vital component in chilled water systems and hydronic heating. Unlike air conditioners that use air, these systems circulate chilled or heated water throughout a building to regulate temperature. The Bell & Gossett 169233 motor directly powers the pump impeller, which spins rapidly to create pressure and efficiently move water through the closed-loop piping system. This pressurized flow of water delivers conditioned water to heat exchangers or air handling units, ultimately controlling the temperature in various zones of a building.
The motor boasts several features that enhance its performance and serviceability in demanding HVAC environments:
Voltage/Electrical: 208-230 volts (3-phase) caters to common commercial electrical systems.
Horsepower (HP): 1 horsepower provides ample power for driving centrifugal pumps in mid-sized to large buildings.
RPM (Revolutions Per Minute): 1725 RPM ensures efficient water circulation throughout the hydronic loop.
Frequency: 60 Hz compatibility aligns with the standard North American electrical grid.
Weight: Approximately 27 pounds allows for easier handling during installation or maintenance.
By powering the pump efficiently, the Bell & Gossett 169233 motor contributes to a reliable and efficient HVAC system. This translates to precise temperature control in various zones, improved occupant comfort, and potentially lower energy consumption due to optimized system operation.

Manufacturer:
https://www.partshnc.com/media/catalog/product/1/6/169233_sporlan-controls_partshnc.jpg

Specifications

  • Voltage/Electrical: 208-230V
  • RPM (Revolutions Per Minute): 17250 RPM
  • Horsepower(HP): 1Hp
  • Frequency: 60Hz
  • Weight: 27lbs

1Hp 1750Rpm 208-230/460V3ph Motor Xylem-Bell & Gossett 169233

The Xylem-Bell & Gossett 169233 is a 1-horsepower (HP), 1750-revolution-per-minute (RPM), 3-phase electric motor specifically designed for use with Bell & Gossett Series 60 circulator pumps. It plays a crucial role in driving the circulation of water in various heating and cooling systems, ensuring efficient and reliable operation.

Key Features:

Function:

  • Provides power to the pump: Transforms electrical energy into mechanical energy to propel the pump's impeller and provide the required water flow.
  • Maintains consistent flow: Delivers the desired water flow rate for optimal system performance, whether in heating, cooling, or domestic hot water applications.
  • Matches specific pump requirements: Designed to seamlessly integrate with Bell & Gossett Series 60 pumps, ensuring compatibility and optimal performance.

Features:

  • Durable construction: Built with high-quality materials for long-lasting performance and reliability.
  • Energy-efficient: Designed with economy, low operating costs, and minimal environmental effect in mind.
  • Open drip-proof enclosure: Protects internal components from dripping water while allowing for ventilation and heat dissipation.
  • Single-speed operation: Provides a fixed speed for consistent and predictable flow in most applications.
  • Versatile compatibility: Works with a wide range of Bell & Gossett Series 60 pump models.

Benefits:

  • Reliable water circulation: Ensures efficient and consistent flow in your heating, cooling, or hot water system.
  • Enhanced system performance: Optimizes pump operation for improved efficiency and energy savings.
  • Long lifespan: Durable construction offers reliable performance for years to come.
  • Easy installation: Designed for seamless integration with Bell & Gossett Series 60 pumps.

Important Notes:

  • This motor is specifically designed for use with Bell & Gossett Series 60 circulator pumps. Prior to making a purchase, always make sure the pump model is compatible with yours.
  • Installation should be performed by a qualified plumbing or HVAC technician to ensure proper functionality, safety, and compliance with electrical and plumbing codes.

Additional Information:

  • Xylem-Bell & Gossett offers a wide range of pumps, motors, and other HVAC products.
  • You can find the 169233 and other Xylem-Bell & Gossett parts at authorized distributors, online retailers, or the Xylem-Bell & Gossett website.

Signs of a Faulty Xylem-Bell & Gossett 169233 1Hp 1750Rpm 208-230/460V3ph Motor:

Circulation Issues:

  • Reduced water flow: The water flow through your heating, cooling, or hot water system becomes weaker than usual, suggesting the pump isn't operating at full capacity.
  • Uneven heating or cooling: Different areas in your building experience inconsistent temperature, potentially due to inadequate water circulation.
  • Frequent pump cycling: The pump turns on and off more frequently than usual, possibly indicating issues with starting or maintaining proper RPM.
  • Complete system failure: The pump doesn't turn on at all, leading to a complete lack of water circulation and system malfunction.

Operational Problems:

  • Unusual noises: Loud humming, grinding, or vibrating sounds coming from the pump area can signify bearing wear, internal component issues, or electrical problems.
  • Excessive heat: The motor feels hot to the touch or emits a burning smell, suggesting overheating due to internal issues or overload.
  • Vibrations: Excessive vibrations transmitted from the pump can indicate imbalance, bearing problems, or loose connections.

Electrical Issues:

  • Sparks or burning smells: Sparks or burning smells near the motor or electrical connections are serious safety hazards and require immediate attention.
  • Tripping circuit breakers: Frequent tripping of circuit breakers connected to the pump can indicate overloading or electrical faults within the motor.

Additional Warning Signs:

  • Increased energy consumption: Higher electricity bills might point towards inefficient pump operation due to motor malfunction.
  • Visible damage: Physical damage to the motor housing, wiring, or internal components can be a sign of internal issues or external impact.

Remember:

  • If you suspect any of these signs, do not attempt to diagnose or repair the 169233 1Hp 1750Rpm 208-230/460V3ph Motor yourself. Contact a qualified plumbing or HVAC technician immediately for inspection and potential repair.
  • When working with plumbing and electrical systems, safety should always come first. Cut the power and water supplies if necessary.
  • Consult the user manual or installation guide for specific troubleshooting steps and potential error codes related to the motor and pump.
