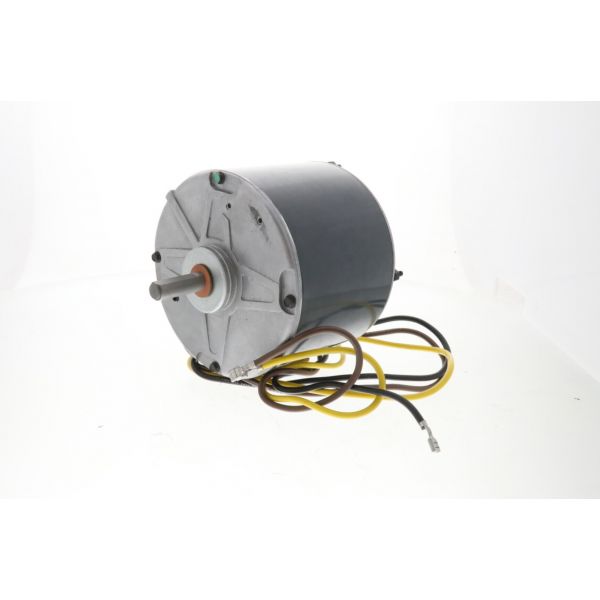

Carrier HC37GE210 Motor 1/5 HP 825RPM 208/230V
Special Price $433.12 Regular Price $480.76
In stock
SKU
HC37GE210
The Carrier HC37GE210 is a PSC motor that is made permanently suitable to be used in several Carrier HVAC appliances. This is a single-phase motor with dimensions of 6.25 x 5.75 x 6.75 inches and a horsepower of 1/5 making it ideal for most applications. This motor effectively generates 825 RPM at 60 Hz to run crucial components inside your HVAC system. The PSC motor design incorporates a capacitor to enhance the starting torque and running capabilities of the motor. This boasts a fully enclosed construction, smooth operation through sleeve bearings, and an insulation class of B.
Manufacturer:
Specifications
- Length: 6.25 "
- Width: 5.75 "
- Height: 6.75 "
- Amperage: 0.95 Amps
- Bearing Type: Sleeve
- Capacitor: 7.5 MFD
- Frequency: 60 Hz
- Duty: Continuous (S1)
- Full Load Amps: 0.95 Amps
- Insulation Class: B
- Enclosure: Fully Enclosed
- Motor HP: 1/5 HP
- Type: PSC (Permanent Split Capacitor)
- Mounting Type: Studs
- NEMA Frame: 48
- Speeds: 1 Speed
- Phases: 1 Phase
- RPM: 825
- Rotation: Clockwise (CW)
- Shaft Diameter: 0.5 "
- Shaft Length: 1.5 "
- Voltage: 208V-230V
- Weight: 11.27lbs
