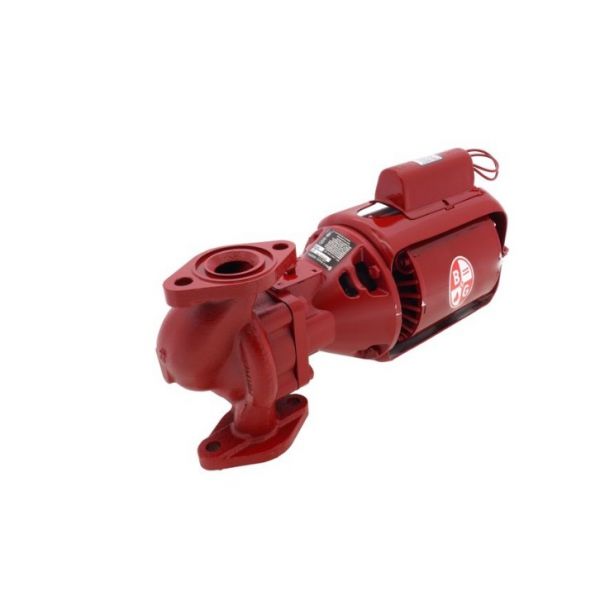

The Xylem-Bell & Gossett 106189 Circulator Pump is an essential component of the HVAC system. Designed with cast iron and has an RPM of 1725, making for heating and cooling purposes. Water movement is required for heat exchange in radiators, boilers, or chillers. It maintains the flow of fluids and maintains energy and comfort within to a better extent. With a horsepower of 1/12HP, it is cost-effective in power consumption and suitable. This circulator pump regulates the system, cools it, and makes the operation smooth and steady.
The Xylem-Bell & Gossett 106189 is a complete circulator pump belonging to the Bell & Gossett Series 100 NFI. It's designed for various hydronic heating and cooling applications, offering efficient and reliable water circulation in residential and light commercial systems. is a 1/12 HP, 115 VAC, flanged, cast iron, 3-piece booster pump designed for hydronic heating and cooling systems. It is renowned for its high performance, dependability, and longevity.
Key Features:
Cast iron construction: long-lasting and resilient, able to tolerate harsh operating conditions
Non-ferrous impeller: Resists corrosion and wear, particularly suitable for chilled water systems.
1/2-inch NPT connections: Compatible with standard piping in most common installations.
1-1/2 x 1-1/2 x 7 impeller size: Delivers good flow rate and head pressure for typical heating and cooling needs.
Multiple voltage options: Available in 115V, 230V, and 460V configurations to match your system requirements.
Energy Star certified: Meets strict efficiency standards, minimizing operating costs and environmental impact.
Quiet operation: Minimizes noise disturbances in living or working spaces.
Multiple flange options: Compatible with various piping configurations and easy installation.
Functions:
Circulates hot or chilled water: This pump moves water through pipes in heating and cooling systems, ensuring even temperature distribution throughout the building.
Boosts water pressure: In some applications, the pump can increase water pressure to overcome friction and ensure proper flow.
Maintains system efficiency: By continuously circulating water, the pump prevents stagnation and optimizes system performance.
Applications:
Residential and light commercial hydronic heating systems: Hot water boilers, radiant floor heating, and baseboard heaters.
Residential and light commercial hydronic cooling systems: Chilled water air conditioners and fan coil units.
Domestic hot water circulation: Maintaining hot water readily available at taps and appliances.
Booster systems: Increasing water pressure for specific zones or applications within the system.
Signs of a Faulty 106189 Series 100 Iron Xylem-Bell & Gossett:
Here are some red flags to watch out for that might indicate a malfunctioning Xylem-Bell & Gossett 106189 circulator pump:
Performance Issues:
Decreased flow rate: The pump might not be able to circulate the water as efficiently as usual, leading to uneven temperatures, reduced heating/cooling capacity, or insufficient hot water at taps.
Increased noise: Listen for unusual noises coming from the pump, such as grinding, squealing, or banging. These sounds can indicate worn-out bearings, impeller damage, or air in the system.
Vibrations: Excessive vibrations emanating from the pump can be a sign of internal issues like impeller imbalance or shaft misalignment.
Leaks: Notice any leaks of water or coolant around the pump, particularly near the connections or seals. This could indicate a damaged gasket, cracked housing, or worn-out seal.
Operational Problems:
Frequent tripping of the circuit breaker: The pump might trip the circuit breaker more frequently than usual due to increased power consumption caused by internal problems like a seized bearing or blocked impeller.
Pump failure: In severe cases, the pump might completely fail to operate due to a major malfunction like a motor burnout or electrical failure.
Additional Indicators:
Increased energy consumption: The pump might require Series 100 Iron 106189 more energy to operate due to inefficiency caused by internal issues.
Reduced system performance: The overall heating/cooling system might not perform as well as usual due to the pump's decreased effectiveness.
