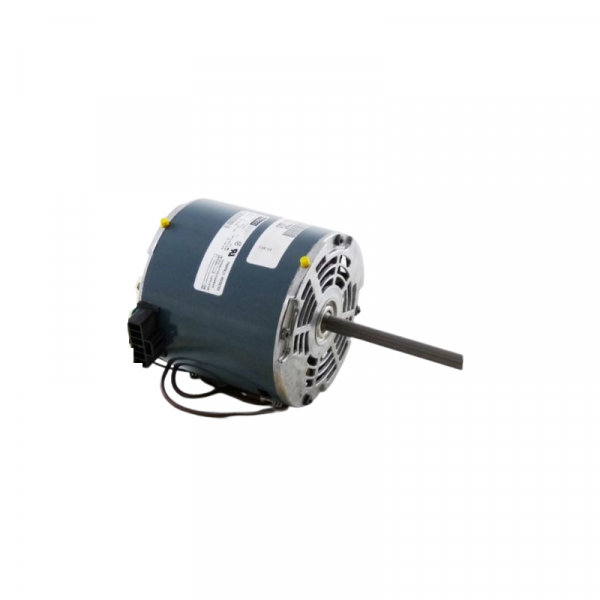

Motor-driven assemblies use motors to provide the rotational mechanical movement required by connected components. A motor converts electrical energy into mechanical rotation and transfers that movement through its shaft to the driven assembly. The Titus HVAC 10317203 provides this rotational drive for its associated mechanical application.
Motor Operating Principle:
The motor converts electrical energy into mechanical rotation through its internal motor assembly. The resulting rotational movement is transferred through the shaft to the connected component, providing the mechanical drive required for the assembly's intended operation. The shaft serves as the mechanical connection between the motor and the driven component.
Rotation Direction and Mechanical Output:
The 10317203 is identified with a right-hand designation and counterclockwise (CCW) rotation. Rotation direction defines the direction in which the motor shaft moves during operation and determines how the connected component receives the motor's mechanical output. The stated CCW direction is therefore a defined operating characteristic of the motor.
Replacement Guidelines:
Replacement may be appropriate when the 10317203 develops a motor fault that prevents the required shaft rotation or when the motor can no longer provide the mechanical output required by the connected assembly. Before ordering, compare the existing 10317203 part number with the applicable equipment requirements and verified specifications.
Common Failure Symptoms:
- Motor fails to start
- Intermittent motor operation
- Motor-driven function stops unexpectedly
- Irregular shaft rotation
- Unusual motor or connected-assembly noise
Equipment Compatibility:
The Titus HVAC 10317203 Motor should be matched to equipment requiring the documented 3/4 HP, 277V, right-hand motor configuration with CCW rotation. Before installation, verify the equipment model, original part number, electrical requirements, rotation direction, mounting arrangement, and shaft connection against the applicable manufacturer documentation.
Technical Specifications:
Part Identification:
Brand: Titus HVAC
Part Number: 10317203
Product Type: Motor
Electrical:
Voltage: 277V
Mechanical:
Horsepower: 3/4 HP
Rotation Designation: Right Hand
Rotation Direction: Counterclockwise (CCW)
