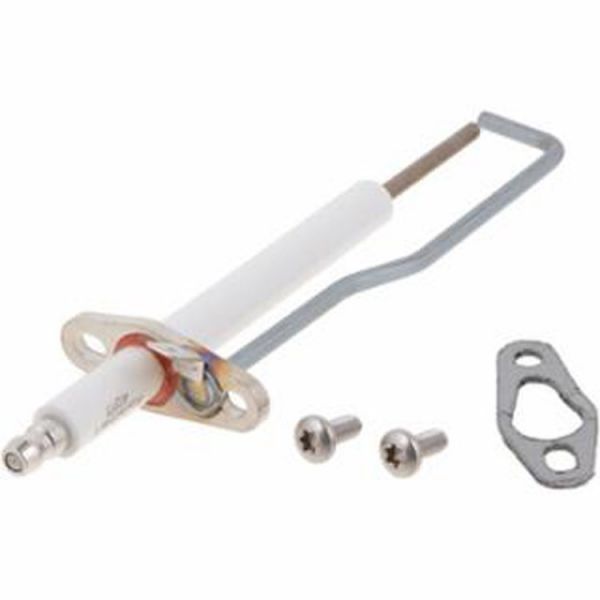

Lochinvar & A.O. Smith 100275562 Ignitor Kit W/Gasket & Screws

Special Price $60.35 Regular Price $69.40
In stock
SKU
100275562
The Lochinvar & A.O. Smith 100275562 Ignitor Kit is a complete ignition kit with ignitor, gasket, and screws for the ignition of gas fired water heaters and boilers. It operates through establishing an electrical or heat arc to ignite the gas burner all in a safe manner to make a functioning heater. The Lochinvar and A.O. Smith heating equipment maintenance or restoration requires a kit compatible with these models. This makes it long lasting and the gasket and screws that are included make it easy to install. The performance is always guaranteed the energy consumption is optimized and the HVAC systems do not require frequent repairs.

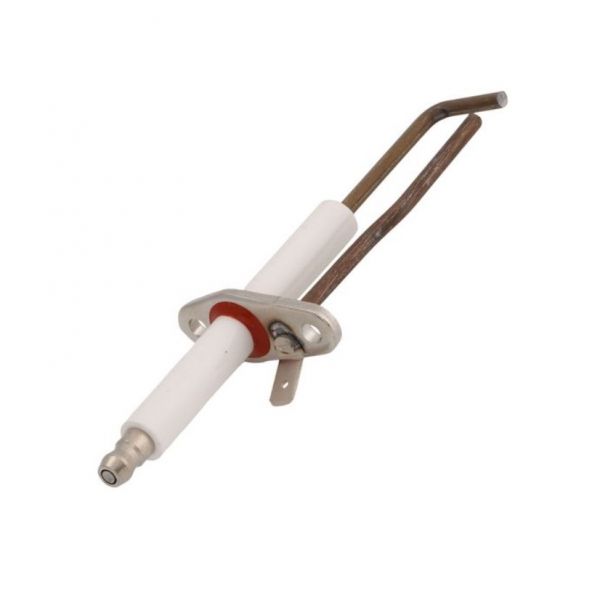

https://www.partshnc.com/media/catalog/product/1/0/100275562.jpg

Specifications

  • Type: Ignitor Kit With Gasket & Screws

    PRODUCT OVERVIEW:
    Initiates burner ignition by providing the electrical spark required to light the fuel during the heating cycle. The Lochinvar & A.O. Smith 100275562 Ignitor Kit W/Gasket and Screws is an OEM replacement assembly that includes an ignitor, gasket, and mounting screws. These components support the installation and operation of the appliance's burner ignition arrangement.

    SPARK GENERATION:
    Converts electrical energy into a spark at the ignitor electrode, creating the ignition source for the burner fuel-air mixture. The electrode's positioning and electrical connection support effective spark delivery at the specified ignition point.

    BURNER IGNITION COORDINATION:
    Integrates the ignitor into the appliance's controlled startup sequence. When the heating control initiates ignition, the assembly provides the spark at the required stage to support flame establishment. The included gasket and screws maintain the intended mounting arrangement and help secure the ignitor within the burner assembly.

    REPLACEMENT GUIDELINES:
    Replace the Lochinvar & A.O. Smith 100275562 Ignitor Kit W/Gasket and Screws when the burner fails to ignite, spark delivery becomes inconsistent, or the appliance repeatedly attempts startup without establishing a flame. Replacement may also be necessary if the ignitor is cracked, the gasket is deteriorated, or mounting hardware is damaged or missing. Have a qualified heating technician handle electrical testing, installation, and burner safety checks.

    COMMON FAILURE SYMPTOMS:

    • Burner fails to ignite during startup.
    • Weak or inconsistent ignition spark.
    • Repeated ignition attempts without flame.
    • Deteriorated gasket around mounting area.
    • Loose or damaged mounting hardware.

    EQUIPMENT COMPATIBILITY:
    The Lochinvar & A.O. Smith 100275562 Ignitor Kit W/Gasket and Screws is an OEM replacement component intended for compatible Lochinvar and A.O. Smith heating equipment requiring this specific ignition assembly. Before installation, verify the existing part number, ignitor configuration, mounting arrangement, gasket fit, and electrical connection. Confirming these details helps ensure the replacement kit matches the appliance's original assembly requirements.

    TECHNICAL SPECIFICATIONS:
    Brand: Lochinvar & A.O. Smith
    Part Number: 100275562
    Product Type: Ignitor Kit
    Included Components: Gasket and Screws

    Write Your Own Review
    You're reviewing:Lochinvar & A.O. Smith 100275562 Ignitor Kit W/Gasket & Screws
    Your Rating
    Customer Questions
    What maintenance is required for the Lochinvar & A.O. Smith 100275562 Ignitor Kit?

    Inspect the ignitor regularly for cracks, corrosion, or carbon buildup and keep it clean. Ensure connections are tight and gasket is properly sealed. Ensures proper accuration ignition and safe burner operation while preventing misfires and shutdowns.

    What are common issues with the Lochinvar & A.O. Smith 100275562 Ignitor Kit?

    • Cracked ceramic ignitor causing no spark or weak ignition.
    • Carbon buildup leading to inconsistent firing.
    • Loose or damaged wiring connections causing intermittent operation.
    • Gasket failure resulting in poor sealing and combustion issues.
    • Corrosion on terminals reducing conductivity.

    When should the Lochinvar & A.O. Smith 100275562 Ignitor Kit W/Gasket and Screws be replaced?

    Replace the ignitor if its heating element is cracked, damaged, or unable to reach the required ignition temperature. Repeated burner startup failures may also indicate an ignitor malfunction.

    What is the function of the Lochinvar & A.O. Smith 100275562 Ignitor Kit?

    The ignitor generates the heat required to initiate burner ignition in the heating appliance. The kit includes a gasket and screws for the specified installation.

    How should the Lochinvar & A.O. Smith Ignitor Kit be maintained?

    The ignitor surface, wiring connections, and mounting area for deterioration. Handle the heating element carefully to prevent physical damage during servicing.

    What is included in the Lochinvar & A.O. Smith 100275562 Ignitor Kit?

    The kit includes the ignitor, a gasket, and mounting screws. Check the supplied package contents before installation to confirm all required components are present.

    How can I verify that the Lochinvar & A.O. Smith 100275562 Ignitor Kit fits my appliance?

    Check the complete appliance model and serial numbers against the manufacturer's parts documentation. Confirm the ignitor configuration, electrical requirements, and mounting arrangement match the original component.

    Installation Steps

    Step 1: Turn off power and gas supply; allow the unit to cool completely.

    Step 2: Access the burner assembly and locate the ignitor.

    Step 3: Disconnect wiring and remove mounting screws from the old ignitor.

    Step 4: Install the new ignitor with gasket, securing it evenly.

    Step 5: Reconnect wiring and ensure proper alignment.

    Step 6: Restore gas and power, then test ignition for safe, accurate operation.
