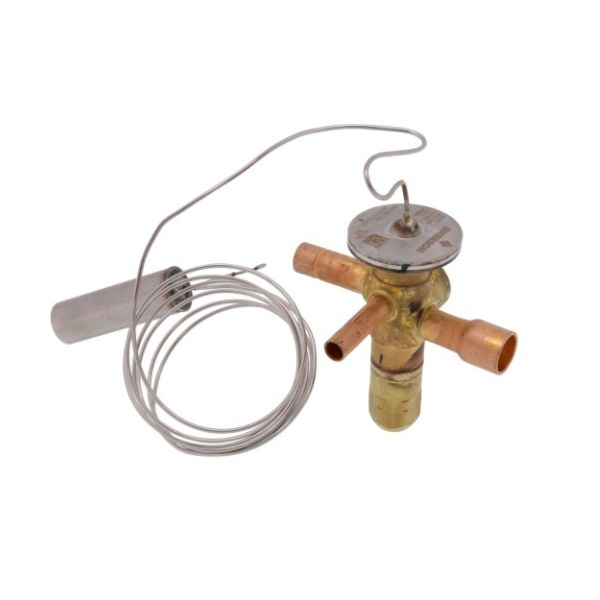

Emerson Flow Control (Alco) 091063 5-Ton Thermal Expansion Valve (TXV) R410A 5' Capillary 3/8" X 1/2" ODF

Special Price $83.00 Regular Price $95.45
In stock
SKU
091063
The Emerson Flow Control (Alco) 091063 Thermal Expansion Valve (TXV) is intended for use in R410A refrigeration HVAC systems, 5 ton, 3/8 “x 1/2” ODF. This valve controls the amount of refrigerant to maintain the correct superheat and hence, the cooling capacity of the installation. The unit has a 5-foot capillary tube that can be placed in any position depending on the setting. The advantages of this valve include increased energy efficiency of the system, increased system performance, and decreased chances of compressor damage due to wrong refrigerant flow. The refrigerant type is suitable for air conditioning and heat pump systems and is suitable to be used in residential and commercial units.
https://www.partshnc.com/media/catalog/product/0/9/091063.jpg

Specifications

  • Type: Valve
  • Capacity: 5Tons
  • Connection Size: 3/8"X1/2"ODF
  • Refrigerant: R410A
  • Capillary Length: 5FT

PRODUCT OVERVIEW:
The thermal expansion valve regulates liquid refrigerant flow into the evaporator coil to maintain controlled refrigerant distribution during cooling operation. The Emerson Flow Control (Alco) 091063 is an OEM 5-ton NXT Series thermal expansion valve designed for R-410A refrigerant systems. It features a straight-through body configuration, adjustable superheat, an internal check valve, a 5-foot capillary tube, and an external equalizer connection. These features support refrigerant metering under changing evaporator operating conditions.

THERMOSTATIC CONTROL:
The valve regulates refrigerant flow through an adjustable internal metering orifice. Its sensing bulb monitors suction-line temperature and transmits a pressure response through the capillary tube to the valve's internal diaphragm. This mechanism adjusts the valve opening to increase or decrease refrigerant supply according to evaporator conditions. The adjustable superheat feature allows the setting to be calibrated for the intended system operation.

PRESSURE CONTROL:
The valve meters refrigerant between the high-pressure liquid line and the lower-pressure evaporator circuit. As liquid R-410A refrigerant passes through the metering orifice, its pressure decreases before entering the evaporator. The 1/4-inch ODF external equalizer connection provides evaporator pressure feedback to support valve regulation. The internal check valve permits reverse refrigerant flow for applicable heat pump operating modes.

REPLACEMENT GUIDELINES:
Replace the thermal expansion valve when internal blockage, mechanical binding, check valve malfunction, or loss of thermostatic responsiveness prevents proper refrigerant metering. Before replacement, inspect the sensing bulb, capillary tube, equalizer connection, and refrigerant circuit for damage, contamination, or restrictions. A qualified HVAC technician should perform the replacement, adjust superheat as required, and verify system operation after servicing.

COMMON FAILURE SYMPTOMS:

  • Reduced cooling performance across the evaporator coil.
  • Unstable evaporator superheat conditions.
  • Inconsistent refrigerant flow through the metering orifice.
  • Unexpected frost formation around the evaporator or refrigerant connections.
  • Irregular refrigerant flow during cooling and heating operation.

EQUIPMENT COMPATIBILITY:
The Emerson Flow Control (Alco) 091063 NXT Series thermal expansion valve is designed for compatible R-410A HVAC and heat pump applications. Verify the 5-ton capacity, 3/8-inch inlet, 1/2-inch outlet, 5-foot capillary tube, and 1/4-inch ODF external equalizer against the equipment model's official parts documentation before ordering or replacement.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Emerson Flow Control (Alco)
Part Number/SKU: 091063
Component Type: Thermal Expansion Valve
Refrigerant Compatibility: R-410A
Physical Specifications:
Inlet Connection: 3/8 Inch ODF
Outlet Connection: 1/2 Inch ODF
Capillary Tube Length: 5 Feet
Flow & Capacity Specifications:
Capacity: 5 Ton

Write Your Own Review
You're reviewing:Emerson Flow Control (Alco) 091063 5-Ton Thermal Expansion Valve (TXV) R410A 5' Capillary 3/8" X 1/2" ODF
Your Rating
Customer Questions
What maintenance is required for the Emerson Flow Control (Alco) 091063 Thermal Expansion Valve?

Inspect refrigerant charge and superheat settings regularly, ensuring the sensing bulb is securely mounted and insulated. Check capillary tubing for kinks or damage and clean any debris around the valve. Periodic leak testing supports maintain efficient cooling and prevents stress.

What are common issues with the Emerson Flow Control (Alco) 091063 Thermal Expansion Valve?

  • Incorrect superheat setting causing poor cooling.
  • Refrigerant undercharge or overcharge leading to inefficiency.
  • Clogged or restricted capillary affecting flow.
  • Bulb misplacement causing unstable operation.
  • Valve sticking or hunting behavior issues.

What is the purpose of the adjustable superheat feature?

It allows the superheat setting to be calibrated to help regulate refrigerant feeding according to the system's operating requirements.

How does the external equalizer support valve operation?

It supplies evaporator pressure feedback to the valve, helping account for pressure differences across the evaporator coil.

What does the internal check valve do?

It permits reverse refrigerant flow through the valve for applicable heat pump operating modes.

Why is the capillary tube important to valve operation?

It transmits the sensing bulb's pressure response to the valve's power element, allowing the metering mechanism to react to temperature changes.

What can happen if the sensing bulb is not positioned correctly?

Incorrect bulb positioning can produce an inaccurate temperature response and cause unstable refrigerant metering.

Installation Steps

Step 1: Recover refrigerant safely and isolate electrical power before service.

Step 2: Remove old thermal expansion valve and clean line set and evaporator inlet thoroughly.

Step 3: Braze valve using nitrogen purge to prevent oxidation and overheating.

Step 4: Attach capillary bulb securely on suction line and insulate properly.

Step 5: Evacuate system, leak-check, then recharge refrigerant per manufacturer specs.

Step 6: Verify pressures match rating before restoring operation.
